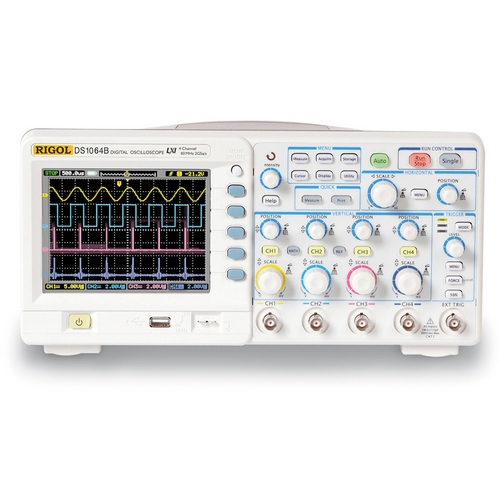

3B Scientific 1008676 Digital Oscilloscope 4x60 MHz

Digital Oscilloscope 4x60 MHz. Capable of simultaneously displaying four independent channels in colour, this digital oscilloscope offers the following functions: Storage and recall of measured signals, automatic measurement of up to 22 parameters, mathematical operations including fast Fourier transformation, delayed sampling, digital filtering. Including four Probes, software and USB cable.

Features:

• Inputs: Coupling: DC, AC, GND
• Impedance: 1 MOhms ± 2%
• Capacitance: 18 pF ± 3 pF
• Probe attenuation factors: 0.001 x - 1000 x
• Maximum input voltage: 100 Vrms, 1000 Vpp (in CAT II)
• Mathematical operations: FFT, +, - , *
• Vertical deflection:
• Deflection coefficient: 2 mV/div. - 10 V/div., 12 stages
• Offset range: ±40 V (245 mV/div. ~ 10 V/div.) ±2 V (2 mV/div. ~ 245 V/div.)
• Accuracy: ±4 % (2 mV/div. - 5 mV/div.) ±3 % (10 mV/div. - 10 V/div.)
• A/D converter: 8-bit resolution
• Bandwidth: 60 MHz
• Rise time: <5 ns
• Horizontal deflection:
• Time coefficient: 5 ns/div. - 50 s/div., 31 stages
• Trigger:
• Trigger sensitivity: 0.1 div. - 1.0 div., adjustable
• Trigger threshold: ±6 div. (internal), ±1.2 V (EXT), ± 6 V (EXT/5)
• Trigger hold-off: 100 ns - 1.5 s
• Operating mode: Edge, pulse width, video, pattern and alternate trigger
• Cursor measurements:
• Manual: Voltage difference, time difference, reciProcal time difference
• Track: Voltage values for Y-axis
• Time values for X-axis
• Automatic: On-line
• Automatic measurement:
• Measurement variables: Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time, Fall Time, +Width,
• Width, +Duty, -Duty, Delay A→B-+,
• Delay A→B+-, Phase A→B+-,
• Phase A→B-+
• General data:
• Display: TFT-LCD, 5.7 inches, 320 pixels x 240 pixels, 64 k colours
• Memory: 16 k
