Operating Frequency:: Operating Frequency: 13.56MHz / 125kHz

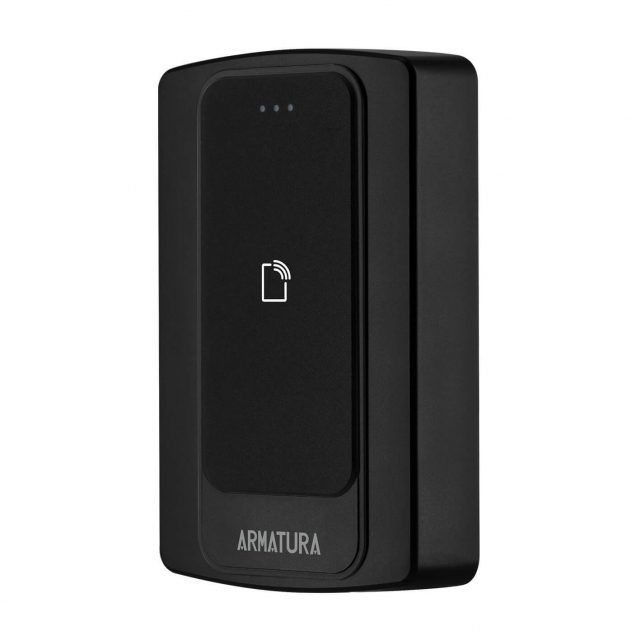

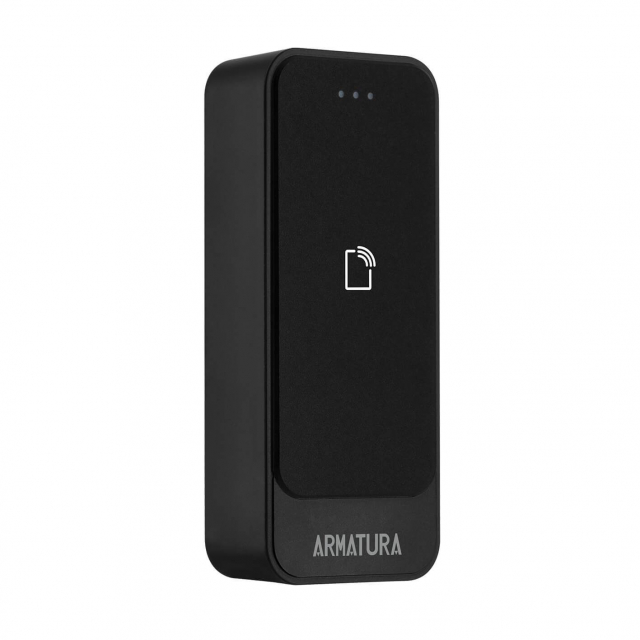

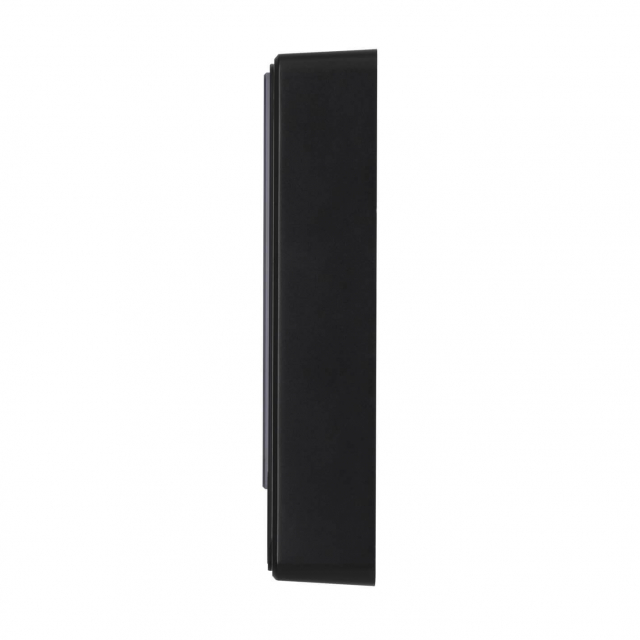

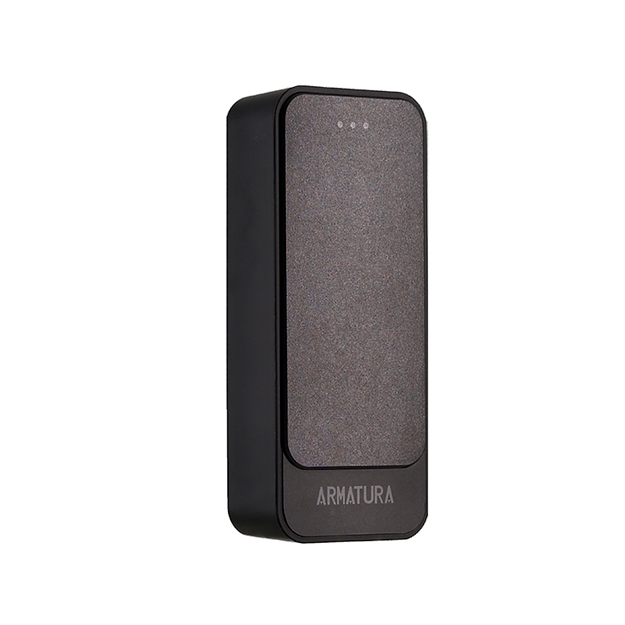

ZKTeco, AMT-EP10C-M, Explorer Series Bluetooth Plus 13.56MHz / 125kHz All Weather Outdoor Multi-Tech Smart Reader

Features:

Mobile Credential Capability
Compact Design with Touch keypad / QR code scanner as options
Enhanced Security
Ultimate Protection (IP68 & IK10 & UL94-V0)
Supports Multi-tech Reading

Note: Works only with amt-bt-card Bluetooth cards.

The EP10 reader series is one of the most compact multi-tech RFID readers in the market, which supports over 100 RFID card types and both mobile NFC and Bluetooth (Low Energy) and is suited for most installation environments. The embedded touch keypad enables passwords as an authentication option for users to suit their needs best.

For more information, please see pdf file Data Sheet

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Operating Frequency / Standards

13.56MHz / 125kHz

Functions

RFID and Bluetooth

Communications and Panel Connection

Wiegand OSDP (v2.2) via RS-485 (Upto128bits SCP Secure Communication)

Reading Distance

Up to 2.3"/60 mm (depending on environment and transponder)

Data Protection

AES128 (Secured Communication between Reader and Controller)
Secure Data Storage in EAL6+ Certified Crypto Chip

Visual Indicator

RGB LEDs (Configurable By 'Armatura Connect' Mobile APP)

Audio Indicator

Internal buzzer with adjustable intensity (Configurable By 'Armatura Connect' Mobile APP)

Power Requirement / Power Supply

9 VDC to 24 VDC

Operating Temperature

-22°F - 158°F /-30°C to 70°C

Dimensions

Standard Cover: 1.89" W x 4.52" H x 0.97" D (48 x 114.8 x 24.7mm)
Gangbox Cover: 3.00" W x 4.84" H x 0.97" D (76.2 x 123.0 x 24.7 mm)

Tamper Switch

Magnetic tamper detection system

Certifications

CE, FCC, RoHs3.0, WEEE, UL294

Mounting

Suited for mullion-mount door installations or any flat surface mounting

Protection / Resistance

Weather and Dust Proof Protection Rating compliant with IP68
Reinforced Vandal-proof Structure IK10 certified

UV Stability

Nil structural degradation for the life of the reader in 3 years

Housing Material

Polycarbonate UL94-V0 and UL746C (F1)

Notes
