Buy Yamato LT-500B, LT500 25 - 1200 rpm Laboratory Stirrer

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

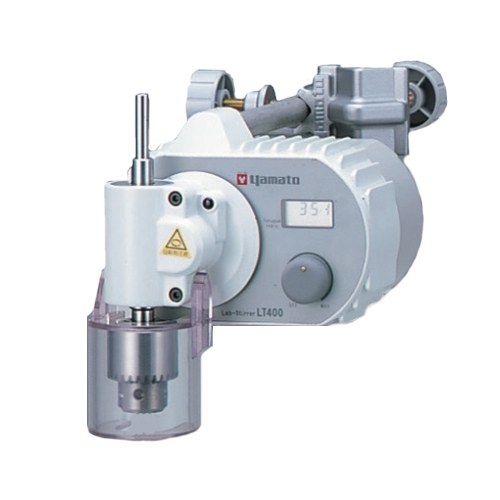

LT500B, LT Series Laboratory Stirrer

LT400D Includes Only:

Features with all optional accessories:

Highly sensitive feedback system keeps the set speed even with changing viscosity during stir
Maintenance free DC brushless motor
Digital speed indicator for accurate speed setting and confirmation
Noise prevention measures for optimal work environment
More safety-oriented design

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Performance
Material	Medium
Revolving speed range	25~1200rpm
Max. torque (Nm / kg-cm)	0.6N x m (6.0kgf x cm)
Components
Motor	DC brushless motor 70W
Chuck	Ø8 mm drill chuck
Speed control	Feedback control
Display panel	Digital speed display, Overload display (When load exceeding the maximum torque is applied, tachometer display flashes), Torque indicator (20% gradation) (Torque indicator LED displays the loading status by 5 gradation)
Safe Device
Safety mechanism	Current-restraining circuitry (When load exceeding the maximum torque is applied, current limit circuit automatically controls the current to protect the motor), Thermal Protector (When temperature of the motor exceeds the upper limit temperature, thermal protector shuts off the current flowing to the motor and prevents it from burnout.), Drill chuck cover
External dimensions(WxDxH)	146 x 154 x 165 mm/ 5.75" x 6.06" x 6.5"
Power source	AC100V~AC125V 50/60Hz
Weight	2.4kg
Power cord	Power supply cord with bipolar grounding type plug 2m

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Performance
Material	Medium
Revolving speed range	25~1200rpm
Max. torque (Nm / kg-cm)	0.6N x m (6.0kgf x cm)
Components
Motor	DC brushless motor 70W
Chuck	Ø8 mm drill chuck
Speed control	Feedback control
Display panel	Digital speed display, Overload display (When load exceeding the maximum torque is applied, tachometer display flashes), Torque indicator (20% gradation) (Torque indicator LED displays the loading status by 5 gradation)
Safe Device
Safety mechanism	Current-restraining circuitry (When load exceeding the maximum torque is applied, current limit circuit automatically controls the current to protect the motor), Thermal Protector (When temperature of the motor exceeds the upper limit temperature, thermal protector shuts off the current flowing to the motor and prevents it from burnout.), Drill chuck cover
External dimensions(WxDxH)	146 x 154 x 165 mm/ 5.75" x 6.06" x 6.5"
Power source	AC100V~AC125V 50/60Hz
Weight	2.4kg
Power cord	Power supply cord with bipolar grounding type plug 2m

Note: Please read description carefully. Do not base your order on the picture presented.
