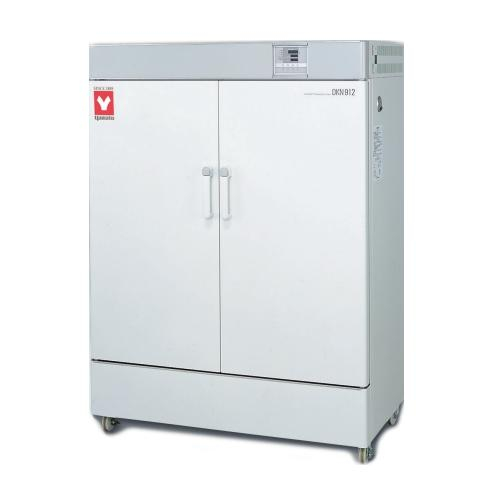

Yamato, DKN-912C, Forced Convection Oven, 535L

Programmable forced convection constant temperature oven with extended functions and safety features

Performance and Functions

Based on excellent performance and affordability
Superior temperature accuracy
Programmable PID controller for easy program settings (30-step, 3-pattern program controller with repeat functions)
Fixed setting, Quick Auto stop, Auto stop, Auto start, Program operating modes with easy control capabilities
Increased safety and self-diagnostic functions
Overheating prevention and calibration off-set are possible with auxiliary functions
Easy to use and maintain
Built in exhaust ports

Safety features

Self-diagnostic functions (Temperature sensor abnormal, Heater disconnection, SSR-short), Automatic overheating prevention, Electric leakage breaker with over current protection, Key lock function

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Circulation Method	Forced air circulation
Operating Temp. Range	Room temp. +10°C~210°C
Temp. Adjustment Accuracy	±1°C (at 210°C)
Temp. Distribution Accuracy	±2.5°C (at 210°C)
Max. Temp. Reaching Time	~60 min.
Interior/Exterior Material	Stainless steel / Cold rolled steel plate with melamine resin baking finish
Heat Insulating Material	Glass wool
Heater	SUS pipe heater/1.8kWx2
Fan Type / Fan Motor	Scirocco fan / condenser type motor x 2pcs 10W
Cable Hole	30mm I.D. (on the right side) 1pc.
Exhaust Port	30mm I.D.x2 (the back)
Observation Window	None
Temp. Controller	3 patterns program controller, PID control by microprocessor
Temp. Setting Method	Digital setting by up\|down key
Temp. Display	Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function
Operation Function	Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop
Program Mode	Program operation : 3 patterns, 30 steps (30 steps x 1, 15 steps x 2, 10 steps x 3) Pattern repeat function
Additional Functions	Calibration off-set function, Key lock, Uninterruptible power for memory
Heater Circuit Control	SSR control
Sensor	K-thermocouple
Safety Device	Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection
Internal Dimensions WxDxH	1070x500x1000 mm
External Dimensions WxDxH	1180x651x1616 mm
Internal Capacity	535L
Shelf Plate With Standard Load	~15kg/piece
Shelf Rest Step Number / Shelf Rest Pitch	29 steps x 2 / 30mm
Power Source 50/60Hz	220V 18A (no plug, round terminal)
Weight	~190kg
Shelf Plate	Shelf and brackets stainless steel plate, 1 pc. on the bottom screwed, 2 pcs.
Shelf Plate / Bracket	8 pcs. / 16 pcs.

Product Details

Circulation Method	Forced air circulation
Operating Temp. Range	Room temp. +10°C~210°C
Temp. Adjustment Accuracy	±1°C (at 210°C)
Temp. Distribution Accuracy	±2.5°C (at 210°C)
Max. Temp. Reaching Time	~60 min.
Interior/Exterior Material	Stainless steel / Cold rolled steel plate with melamine resin baking finish
Heat Insulating Material	Glass wool
Heater	SUS pipe heater/1.8kWx2
Fan Type / Fan Motor	Scirocco fan / condenser type motor x 2pcs 10W
Cable Hole	30mm I.D. (on the right side) 1pc.
Exhaust Port	30mm I.D.x2 (the back)
Observation Window	None
Temp. Controller	3 patterns program controller, PID control by microprocessor
Temp. Setting Method	Digital setting by up\|down key
Temp. Display	Measurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer	1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min. with timer wait function
Operation Function	Fixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop
Program Mode	Program operation : 3 patterns, 30 steps (30 steps x 1, 15 steps x 2, 10 steps x 3) Pattern repeat function
Additional Functions	Calibration off-set function, Key lock, Uninterruptible power for memory
Heater Circuit Control	SSR control
Sensor	K-thermocouple
Safety Device	Self diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection
Internal Dimensions WxDxH	1070x500x1000 mm
External Dimensions WxDxH	1180x651x1616 mm
Internal Capacity	535L
Shelf Plate With Standard Load	~15kg/piece
Shelf Rest Step Number / Shelf Rest Pitch	29 steps x 2 / 30mm
Power Source 50/60Hz	220V 18A (no plug, round terminal)
Weight	~190kg
Shelf Plate	Shelf and brackets stainless steel plate, 1 pc. on the bottom screwed, 2 pcs.
Shelf Plate / Bracket	8 pcs. / 16 pcs.

Note

Note: Please read description carefully. Do not base your order on the picture presented.
