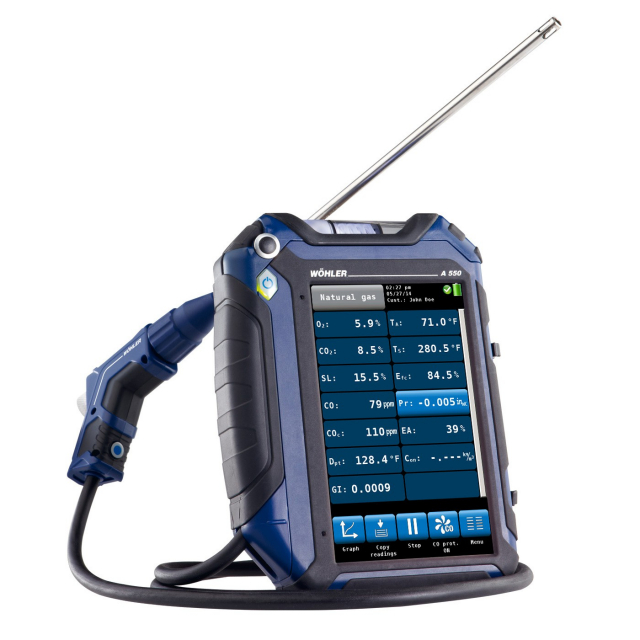

Wohler, 7764, A 550 NO/NO2 Flue Gas Analyzer with TD 100 Thermal Fast Printer

Includes:

Wohler A 550
Additional NO, NO2 sensors
Hose 10 ft and probe 1 ft
Air temp. probe
Clamping cone
USB charger with micro USB cable
Li-Io battery
Water stop filter
Coarse filter
25 wadding filters
Wohler TD 100 thermal fast printer
Case

As robust as cast iron, but as easy to operate as a smartphone – that's what Wohler's new flue gas analyzer feels like in your hand. Appropriately, the advantages are equally substantial: A tip with your finger on the Wohler A 550 is all that is required to perform analyses, inspections and settings on residential and commercial appliances. The flue gas analyzer is equipped with coded connections for the 4 Pa test and even »NEW AND UNIQUE« a wood moisture content measurement function to VDI Guideline 4206 (VDI = Association of German Engineers).

No matter how you look at it, the new Wohler A 550 really is a "nifty piece of equipment": The individual functions can be called up as intuitively as using a smartphone via the large 7" color touchscreen. And the brightly lit monitor can be read anywhere. The generously dimensioned screen and the clearly arranged, in part graphic presentation of readings are an absolutely ideal basis for holding discussions with customers.

"Smart" handling features

Acquiring measurement values is as easy as could be. The analyzer is equipped with magnets, so you can attach it to the casing of the heater or boiler – and your hands are free to work. The probe is fitted with an additional start/stop button, with which it is possible to start or stop measurement readings.

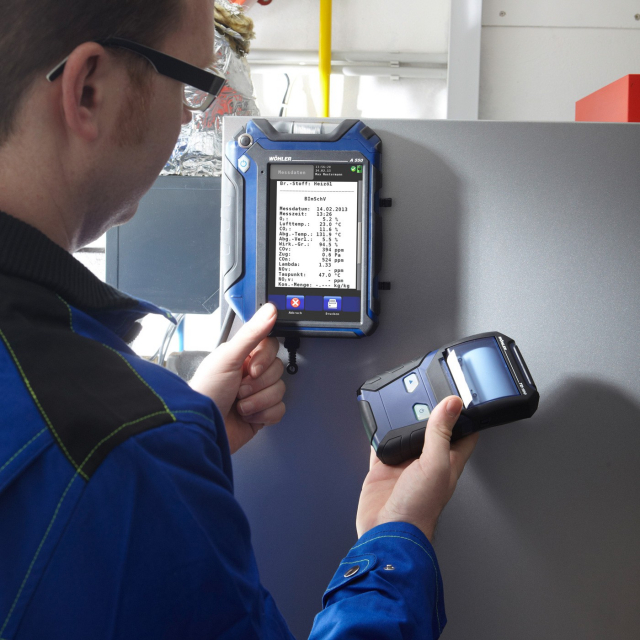

There are a generous number of interfaces available to transfer data to other management programs: USB, infrared and Bluetooth. And with the new Wohler TD 100 Fast Thermal Printer you can print out the readings on the spot, so the customer immediately has the values in black and white in their hand/

Benefits:

Simple to use: Switch on – read off – done
Large, color touchscreen: Displays up to 14 measurement and calculation values
Intuitive to operate via on-screen keyboard
Calibrate in the flue gas pipe via a fresh air pump (Wohler A 550)
Graphic hot spot search

Extremly Reliable:

Effective condensate protection
Automatic CO clean out pump protects CO sensor (Wohler A 550)
4-filter technology – easily accessible
Analyzer and sensor diagnostics
Sensor replacement – user-friendly
Rechargeable battery operating time: more than 12 h with Lithium Ion power
Hose assembly – robust and flexible

Huge Range of Applications:

Expandable with up to 5 sensors
For measurements: NO, NO2
Insertion probe for a variety of measurement tasks
Spillage Test and much more

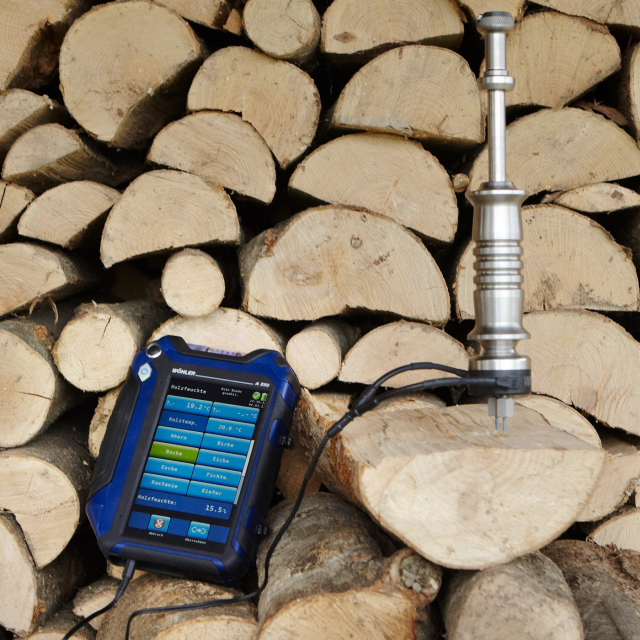

First flue gas analyzer incl. wood moisture content measurement (wood moisture probe included in scope of supply of Wohler A 550)

Simple Data Management:

1,000 measurement records
Data transfer via USB, Bluetooth or infrared

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Oxygen concentration (O2 ) in flue gas
Display	Volume % referenced to dry flue gas
Measurement principle	Electrochemical sensor
Range	0.0-21.0 vol. %
Accuracy	± 0.3 Vol.-%
Carbon monoxide (CO 4,000 ppm) in flue gas
Display	Volume ppm referenced to dry flue gas
Measurement principle	Electrochemical sensor
Range	0-4,000 vol. ppm; resolution 1 vol. ppm
Accuracy	±20 ppm (< 400 ppm), otherwise 5% of reading
Wood moisture
Display	Mass of water referenced to dry fuel mass
Measurement principle	Electrical resistance measurement
Range	10.0-40.0%; resolution 0.1%
Accuracy	±40% of reading tested to VDI 4206 Part 4
Nitric oxide concentration (NO) in flue gas
Display	Volume ppm referenced to dry flue gas
Measurement principle	Electrochemical sensor
Range	0 – 3,000 vol. ppm (continuously up to 1,000); resolution 0.1 vol. ppm (<1,000 vol. ppm), otherwise 1 vol. ppm
Accuracy	±5 vol. ppm (<100 vol. ppm), otherwise 5 % of reading
Nitrogen dioxide concentration (NO2) in flue gas
Display	Volume ppm referenced to dry flue gas
Measurement principle	Electrochemical sensor
Range	0 – 1,000 vol. ppm (continuously up to 200 vol. ppm); resolution 0.1 vol. ppm
Accuracy	± 5 vol. ppm (< 100 ppm), otherwise 5 % of reading
Differential pressure (PD)
Display	inWC
Measurement principle	Semi-conductor diaphragm
Range	0.00 to ± 44.16 inWC; resolution 0.004 inWC (< 4.01 inWC), otherwise 0.004 inWC, with ventilation loss measurement 0.004 inWC
Accuracy	0.3 Pa (< 10.0 Pa), otherwise 3 % of reading
Flue gas temperature (TS)
Display	°C
Measurement principle	Thermocouple (NiCr-Ni) (NiCr-Ni)
Range	- 20.0 °C to 800 °C; resolution 0.1 °C
Accuracy	0 – 133 °C: ± 2°C; 133 – 800 °C: ± 1.5 % of reading
Combustion air temperature (TA)
Display	°C
Measurement principle	Thermocouple (NiCr-Ni)
Range	- 20.0 °C to 100 °C; resolution 0.1 °C
Accuracy	±1 °C
Power supply	Lithium-Ion, rechargeable battery 3.7 V, 5800 mAh, charges via USB
Battery operating time	Approx. 7 h (depends on operating status and display illumination)
Storage temperature	- 20 °C to + 50 °C
Operating temperature	+ 5 – 40 °C to maintain stated accuracy
Weight	1,250 g
Dimensions	220 x 160 x 55 mm (without probe)
Length of cable-hose	1,700 mm

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Oxygen concentration (O2 ) in flue gas
Display	Volume % referenced to dry flue gas
Measurement principle	Electrochemical sensor
Range	0.0-21.0 vol. %
Accuracy	± 0.3 Vol.-%
Carbon monoxide (CO 4,000 ppm) in flue gas
Display	Volume ppm referenced to dry flue gas
Measurement principle	Electrochemical sensor
Range	0-4,000 vol. ppm; resolution 1 vol. ppm
Accuracy	±20 ppm (< 400 ppm), otherwise 5% of reading
Wood moisture
Display	Mass of water referenced to dry fuel mass
Measurement principle	Electrical resistance measurement
Range	10.0-40.0%; resolution 0.1%
Accuracy	±40% of reading tested to VDI 4206 Part 4
Nitric oxide concentration (NO) in flue gas
Display	Volume ppm referenced to dry flue gas
Measurement principle	Electrochemical sensor
Range	0 – 3,000 vol. ppm (continuously up to 1,000); resolution 0.1 vol. ppm (<1,000 vol. ppm), otherwise 1 vol. ppm
Accuracy	±5 vol. ppm (<100 vol. ppm), otherwise 5 % of reading
Nitrogen dioxide concentration (NO2) in flue gas
Display	Volume ppm referenced to dry flue gas
Measurement principle	Electrochemical sensor
Range	0 – 1,000 vol. ppm (continuously up to 200 vol. ppm); resolution 0.1 vol. ppm
Accuracy	± 5 vol. ppm (< 100 ppm), otherwise 5 % of reading
Differential pressure (PD)
Display	inWC
Measurement principle	Semi-conductor diaphragm
Range	0.00 to ± 44.16 inWC; resolution 0.004 inWC (< 4.01 inWC), otherwise 0.004 inWC, with ventilation loss measurement 0.004 inWC
Accuracy	0.3 Pa (< 10.0 Pa), otherwise 3 % of reading
Flue gas temperature (TS)
Display	°C
Measurement principle	Thermocouple (NiCr-Ni) (NiCr-Ni)
Range	- 20.0 °C to 800 °C; resolution 0.1 °C
Accuracy	0 – 133 °C: ± 2°C; 133 – 800 °C: ± 1.5 % of reading
Combustion air temperature (TA)
Display	°C
Measurement principle	Thermocouple (NiCr-Ni)
Range	- 20.0 °C to 100 °C; resolution 0.1 °C
Accuracy	±1 °C
Power supply	Lithium-Ion, rechargeable battery 3.7 V, 5800 mAh, charges via USB
Battery operating time	Approx. 7 h (depends on operating status and display illumination)
Storage temperature	- 20 °C to + 50 °C
Operating temperature	+ 5 – 40 °C to maintain stated accuracy
Weight	1,250 g
Dimensions	220 x 160 x 55 mm (without probe)
Length of cable-hose	1,700 mm
