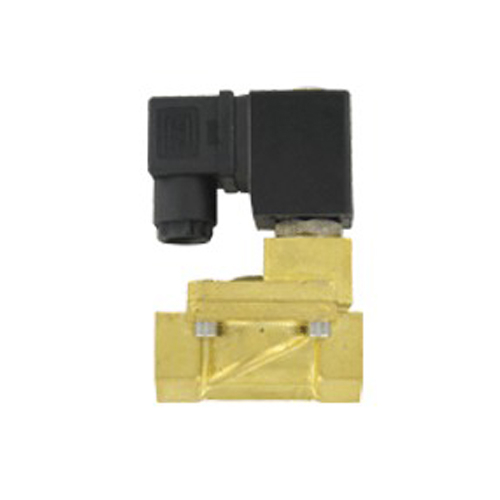

W.E. Anderson SBSV-B5N1 Series SBSV-B Brass Solenoid Valve

Connection Diameter: 3/4", Power: 110 VAC
  • Brand W.E. Anderson
  • Part # SBSV-B5N1
  • Model # Series SBSV-B
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Connection Diameter:
Connection Diameter: 3/4"
Power:
Power: 110 VAC

W.E. Anderson, SBSV-B5N1, Series SBSV-B Brass Solenoid Valve, 2-Way Guided NC, 3/4", 110 VAC

Compact Design, Immune to Mounting Orientation

Series SBSV-B Solenoid Valves are compact, general-service, two-way guide type solenoid valves for air, gas, water and other liquid applications. They are available in brass with a normally closed design and can be oriented in any position. The solenoid enclosure provides protection against dust, while also protecting against seepage of oil and noncorrosive coolants. The Series SBSV-B valves come assembled with an NBR seal, having a maximum process temperature of 176°F (80°C).

Approvals

CE Approval

See more product information See less
Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
ServiceCompatible gases and liquids
Line Size3/4"
End ConnectionsFemale NPT
Operating Pressure:7.3 psi (0.5 bar) to 188.5 psi (13 bar)
Pressure Limit246.6 psi (12 bar)
Wetted MaterialBody: Brass; Spring: 304 SS; Seal: NBR
Temperature LimitsProcess: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C)
Power Requirements110 VAC
Enclosure RatingNEMA 13 (IP54)
Electrical ConnectionDIN connection
Other MaterialsNylon
Mounting OrientationAny position, best if solenoid vertically above valve
Weight1.98 lb
Agency ApprovalsCE
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
ServiceCompatible gases and liquids
Line Size3/4"
End ConnectionsFemale NPT
Operating Pressure:7.3 psi (0.5 bar) to 188.5 psi (13 bar)
Pressure Limit246.6 psi (12 bar)
Wetted MaterialBody: Brass; Spring: 304 SS; Seal: NBR
Temperature LimitsProcess: 176°F (80°C); Ambient: 32 to 149°F (0 to 65°C)
Power Requirements110 VAC
Enclosure RatingNEMA 13 (IP54)
Electrical ConnectionDIN connection
Other MaterialsNylon
Mounting OrientationAny position, best if solenoid vertically above valve
Weight1.98 lb
Agency ApprovalsCE
