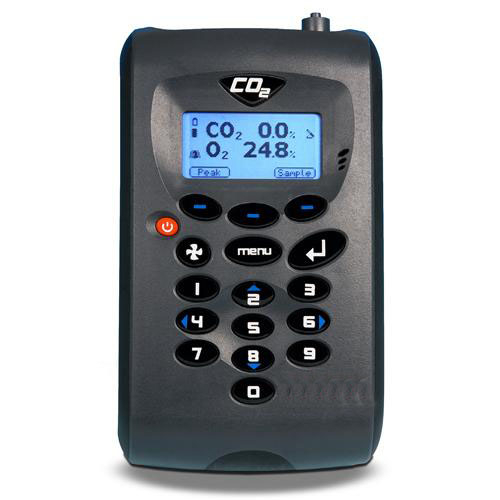

G100 CO2 INCUBATOR ANALYZER |
| POWER SUPPLY |
| Battery type | Li Ion |
| Battery life | 10 Hours (8 hours with pump) |
| Battery lifetime | >300 Cycles |
| Battery charger | 5v DC external power supply and internal charging circuit |
| Charge time | 3 Hours |
| Alternative power | USB connector
DC power supply |
| GAS RANGES |
| Gases Measured | CO2 | By custom dual wavelength infra-red cell with reference channel |
| O2 (Optional) | By internal electrochemical cell |
| Oxygen cell lifetime | Approximately 3 years in air |
| Range | CO2
O2 | 0-100%
0-100% |
Measurement
Accuracy | Gas |
CO2 O2 | Accuracy: ±( 1% of range+ 2% of reading) at reference conditions*
Temperature dependence: ±0.2% reading /oC (typical at 5% CO2)
Pressure dependence: ±0.02% of reading/hPa (typical at 5% CO2) ±1.0% Full Scale @ constant temperature and pressure
±2.0% Full Scale over operating temperature range |
| Response time, T(90) | CO2
O2 | 20 seconds
60 seconds |
| FACILITIES |
| Temperature (Optional) | X2 using optional probes, range 0°C to +50.0°C |
| Temperature accuracy, typical | ±0.2°C from 32 to 44oC, ±0.5°C over the rest of the range |
| Barometric pressure | 800-1200 mbar |
| RH measurement (Optional) | RH Probe 0-100% RH non condensing |
| RH accuracy | ±1.5%RH across the range |
| Visual and audible alarm | User selectable CO2 and O2 alarm levels |
| Communications | USB type B mini-connector, HID device class |
| Data Storage | 1000 reading sets + 270 events |
| PUMP |
| Flow | 100cc/min typically |
| ENVIRONMENTAL CONDITIONS |
| Operating temperature | 5°C - 40°C |
| Relative humidity | 0 - 95% non condensing (RH Probe 0-100% non condensing) |
| Barometric pressure | ±500mbar from calibration pressure |
| IP rating | IP40 |
| PHYSICAL |
| Weight | 495 grams |
| Size | L 165mm, W100mm, D55mm |
| Case Material | ABS / Polypropylene with Silicone Rubber Inserts |
| Keys | 17 Resin capped Silicone rubber keys |
| Display | Liquid crystal display, 128 x 64 pixel
With RGB LED back-light |
| Gas sample filters | Built-in gas dryer tube to remove moisture
User replaceable PTFE water trap filter |
A - Analyser B - Operating Manual C - Mains Battery Charger D - Mains Battery Charger Adaptors:Europe, US, Australia |
| E - Sample Tube Kit: Sample Filter, Sample Tube |
A - Main Read Screen | Start and end screen when using the instrument. |
| B - Soft-Keys | The function of the three "soft-keys" on the front of the instrument panel are determined by menu options taken. Functions vary from screen to screen. |
| C - On/Off Key | Press the "On/Off" key briefly to switch the instrument on and off. |
| D - Pump Key | Press the "Pump" key to start or stop the pump. |
| E - Key 4 - Scroll Left | Also "Key 4". Enables the operator to scroll left to display more information. |
| F - Key 8 - Scroll Down | Also "Key 8". Enables the operator to scroll down to display more information. |
| G - Menu Key | Press the "Menu" key to go to the "Main" menu. Enables the operator to pre-set values and settings. Select options from the "Main" menu to also view data and readings stored or held. |
| H - Enter Key | The "Enter" key accepts/confirms choices made by the operator to various functions and operations. Also, required to confirm numeric data entry. |
| I - Key 2 - Scroll Up | Also "Key 2". Press scroll up to view further information on the instrument read screen. |
| J - Key 6 - Scroll Right | Also "Key 6". Press scroll right to view further information on the instrument read screen. |
| K - Moisture Removal Tube | Removes the moisture from the sample gas. |
| L - Serial Number | Unique Identification for the instrument. Verification of the serial number will be required if Technical Support assistance is needed. |
| M - Instrument Stand | Instrument stand. |
| A - Temperature 1 | Temperature 1 connector measures differential temperature - incubator and ambient temperatures. |
| B - Temperature 2 | Temperature 2 connector measures differential temperature - incubator and ambient temperatures. |
| C - Humidity Probe (Optional) | Humidity probe attachment point. |
| D - Gas Outlet | Gas outlet port used to exhaust the gas. |
| E - Gas Inlet | Gas inlet point used to attach the sample tube and filter in order to take the gas reading. |
| F - USB Cable Attachment Point | Used to connect the analyser to a PC via a USB cable to download data. |
| G - Mains Battery Charger Point | Used to attach the mains charger to the analyser for charging. |
