VELAB VE-403 Binocular Advanced Inverted Microscope

  • Brand VELAB
  • Part # VE-403
  • Condition
    Brand New
  • Manufacturer List Price
    $2,893.00
Availability
Typically In Stock
Check Availability
Quantity
Share:

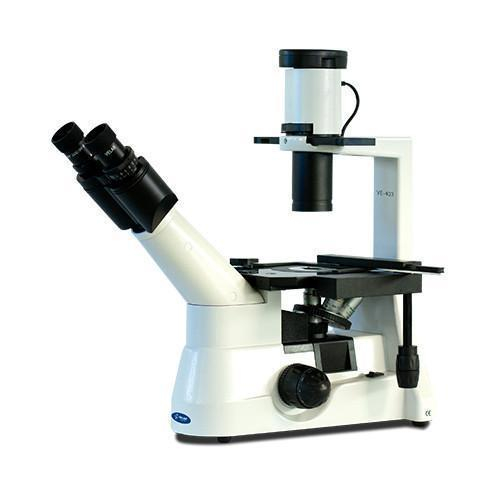

The VE-403 is a professional inverted microscope, ideal for the observation of samples in large containers such as culture bottles, petri dishes or microplates. It includes accessories for phase contrast applications and different stage adapters for a wide range of sample containers. Excellent for observation of cell cultures without prior preparation, monitoring of activity and growth, as well as production and quality control of biological products (vaccines, drugs, serums, antisera and reagents)

VE-403 Includes Only:

  • Eyepiece centering telescope.
  • Metal stage adapter.
  • 10X/20X lamella for phase contrast.
  • Blue, green, opaque white and yellow filters.
  • Holder for slides, Petri dishes (37, 54 and 64 mm) and Terasaki plate.
  • Power cord.

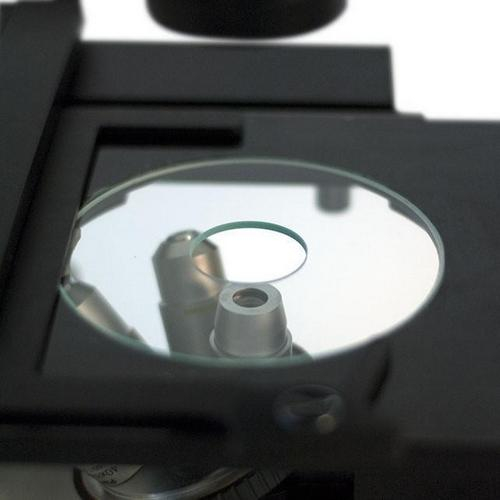

  • Crystal stage adapter.
  • Dust cover.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
EyepiecesWF 10x/20mm with rubber eyecups and diopter adjustment on one Eyepiece.
HeadBinocular Siedentopf type, 45 degree inclined with interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95".
NosepieceQuadruple Nosepiece with anti-slip ring and click-stops, mounted on high-tension ball bearings.

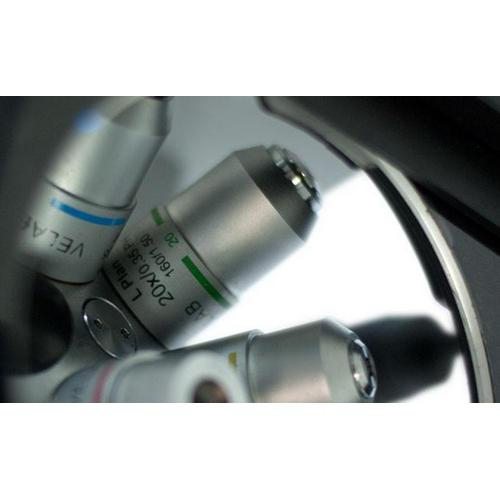

Objectives4X, 10XPH, L20XPH (retractable) and L40X (retractable) oil immersion with plan achromatic optics, metallic finish and color ring for easy identification.
StandStative, robust and reinforced with epoxy paint finish.
StageMechanical with X-Y coaxial movement, 242 x 172 mm / 9.52" x 6.77" and clamp.
CondenserAbbe, 0.3 A.N. with 75mm / 2.95" distance.
DiaphragmIris with filter holder.
FocusingCoarse and fine anti-slip control knob with tension adjustment.
IlluminationEpi-halogen 12V/30W with variable intensity control.
Power Supply110-240V, 50/60 Hz, AC Adapter.
Dimensions12.59" x 19.29" x 20.47"
Product Details
EyepiecesWF 10x/20mm with rubber eyecups and diopter adjustment on one Eyepiece.
HeadBinocular Siedentopf type, 45 degree inclined with interpupillary distance adjustment between 48 - 75 mm / 1.88" - 2.95".
NosepieceQuadruple Nosepiece with anti-slip ring and click-stops, mounted on high-tension ball bearings.
Objectives4X, 10XPH, L20XPH (retractable) and L40X (retractable) oil immersion with plan achromatic optics, metallic finish and color ring for easy identification.
StandStative, robust and reinforced with epoxy paint finish.
StageMechanical with X-Y coaxial movement, 242 x 172 mm / 9.52" x 6.77" and clamp.
CondenserAbbe, 0.3 A.N. with 75mm / 2.95" distance.
DiaphragmIris with filter holder.
FocusingCoarse and fine anti-slip control knob with tension adjustment.
IlluminationEpi-halogen 12V/30W with variable intensity control.
Power Supply110-240V, 50/60 Hz, AC Adapter.
Dimensions12.59" x 19.29" x 20.47"
Note

Note: Please read description carefully. Do not base your order on the picture presented.
