United Scientific Supplies HLEF01 Hall Effect Apparatus

Features:

• N-type GaAs Hall sensor chip
• Helmholtz coil pair 75mm effective diameter, 11.25mT central magnetic induction at 0.5A
• Two-axis mechanical traverse for field plotting
• Constant current sources for the magnet (0-0.5A) and Hall driving current (0-3mA)
• Reversing switch for exploring the elimination of systematic error
• 3-1/2 digit current and voltage meters
• Metal storage case for the Hall Effect board
• Explores the Hall Effect in a GaAs semiconductor
• Explores systematic errors and their elimination
• Determines the conductivity of the semiconductor
• Uses the semiconductor to plot the coils' magnetic field

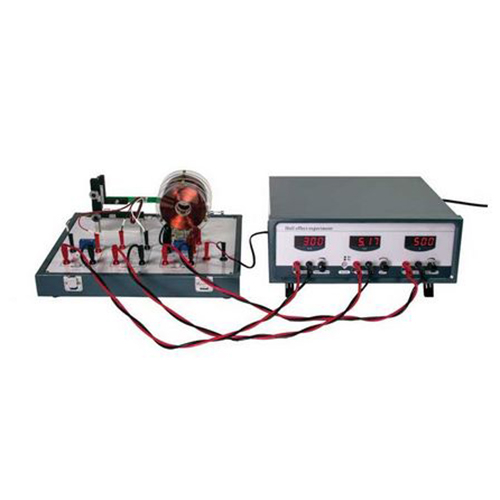

The Hall Effect is the generation of a side-to-side voltage in a conductor or semiconductor carrying a current when it is placed in a magnetic field. The effect is widely used in magnetic field sensors. It is associated with several well-known systematic errors, some of which can be eliminated by special measurement techniques. This Hall Effect Apparatus consists of a mounted N-type semiconductor chip on a traverse mechanism, a pair of coils, relay-controlled reversing switches, and a control unit with connecting cords.
