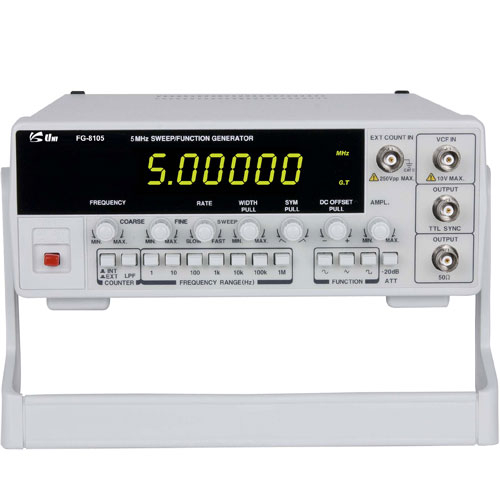

| Output Characteristics |
| Waveforms | Sine, Square, Triangle, Ramp, Pulse, Sawtooth, TTL Leveled Square, DC |
| Frequency Range | 0.05 Hz to 5 MHz in 7 ranges (1, 10, 100, 1k, 10k, 100k, 1M) |
| Frequency Accuracy | ± 5% of full scale |
| Output Level | 20 Vp-p in open circuit, 10 Vp-p into 50Ω Load |
| Output Impedance | 50Ω ± 5 % |
| Attenuator | 20 dB fixed and continuously variable |
| DC Offset | More than ± 5V (into 50Ω) |
| Waveform Characteristics |
| Sinewave | Flatness : ± 0.3 dB to 5 MHz |
| Distortion : Less than 1 % at 0.2 Hz to 100 kHz |
| Squarewave | Rise and Fall Time : Less than 120 nSec |
| Trianglewave | Linearity : More than 99 % at 0.2 Hz to 100 kHz |
| TTL Output | Rise and Fall time : Less than 25 nSec |
| Output Level : TTL Level (H ≥ 2.4 V, L ≤ 0.4 V) |
| Symmetry Variation | 1:1 to 10:1 |
| Sweep Function Mode Characteristics |
| Mode | Linear |
| Width | Variable from 1:1 to 100:1 |
| Rate | 0.5 Hz to 50 Hz (20 mSec to 2 Sec) |
| External VCF Input | Input Voltage : 0 to 10 V |
| nput Impedance : Approx. 10 kΩ |
| Frequency Counter Characteristics |
| Display | 7 digit Green LED, Gate time, MHz, kHz, Hz, mHz |
| Frequency Range | 0.2 Hz to 100 MHz |
| Accuracy | ± Timebase Error ± 1 count |
| Low Pass Filter | -3dB, 100kHz |
| Timebase | 10 MHz X-TAL, 20PPM |
| Input Sensitivity | 100 mVrms |
| Max. Input Voltage | 250 Vp-p |
| General |
| Power Requirement | 115 or 230 VAC ± 10%, 48 to 66 Hz |
| Operating Temperature | 0 to 50°C (Accuracy specified at 23 ± 5°C) |
| Dimension | 240 (W) x 270 (D) x 90 (H) mm |
| Weight | Approx. 2.8 kg |
| Standard Accessories | Power Cord, BNC Cable, Fuse, Instruction Manual |
