DPM Includes Only:
- Manometer
- Flexible Transparent Tubing (2)
- Brass Fitting (2)
- Batteries AAA (3)
- Soft case
- Certificate of Compliance
Features:
- Wireless connection to a FREE app
- Backlight
- Auto Power off
- Low Battery Indicator
- Zero Function
- Magnetic Mount
Functions:
- Measures Pressure ±80 inWC
- High-Resolution at Ranges Below 10 inWC
Application:
- Check gas pressures in accordance with equipment manufacturers specifications.
- Measure draft, gas supply, manifold or burner pressures.
- Dual input offers users the ability to measure pressure drops across heat exchangers, cooling coils, supply and return.

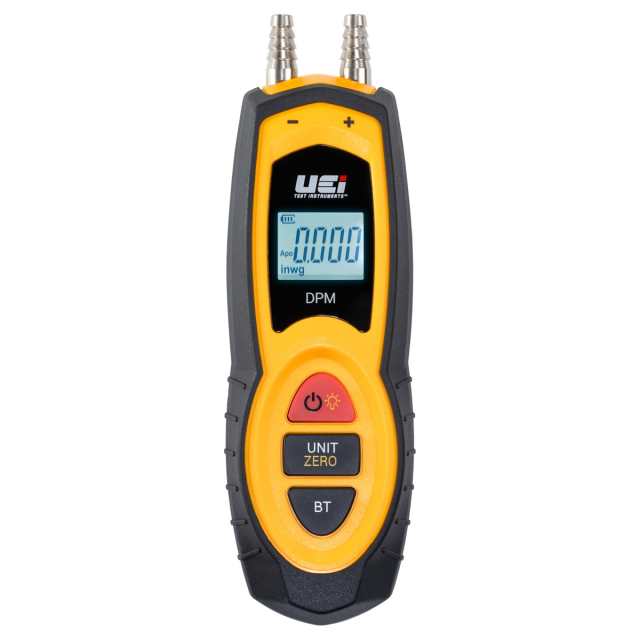

The DPM is a compact and easy-to-use differential manometer with wireless functionality. Easily view readings on display or wirelessly via the Free App, UEI LINK
The dual port design allows technicians to measure positive, negative, or differential pressure depending on hose configuration.
The DPM features a measurement range of -80 to 80 inwg, 6 different user selectable units, and a zero function.
The DPM also features a backlit display with battery level indication and a power saving Auto Power Off function, as well as protective rubber overmolding with built-in magnetic mount for handsfree operation.
