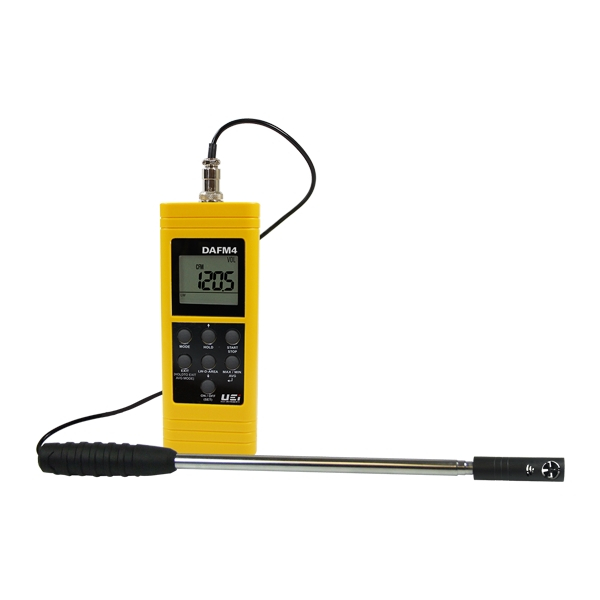

UEi DAFM4-N Digital In-Duct Mini Vane Anemometer, NIST Certificate

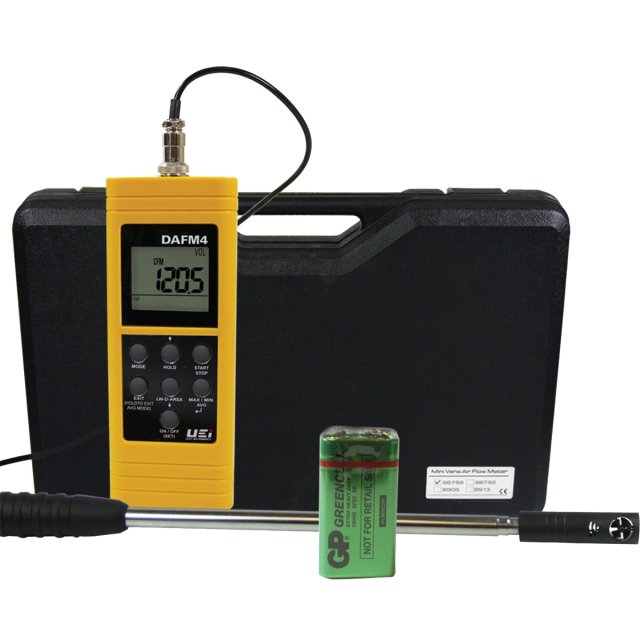

DAFM4-N Includes Only:

• 0.7" diameter vane with 39" telescopic & scale marked probe
• Battery (9V)
• Hard carrying case
• Manual (17022)

Features:

• In-duct or grill surface measurements
• 0.7" diameter vane head with 39" long telescopic & scale marked probe
• Mini vane probe with built-in temperature & RH sensor
• Up to 1 hour accumulative average
• Display Min/Max value
• Data hold
• Auto power off selectable
• Fast, accurate response
• Low battery indication

Functions:

• Air velocity 99 to 3937 ft/m (0.3 to 35 m/s)
• Temperature -4° to 140°F (-20° to 60°C)
• Relative humidity 0.1 to 99.9%
• Dew point
• Wet bulb -4° to 158°F (-20° to 70°C)
• Air volume (CFM, CMM)

Applications:

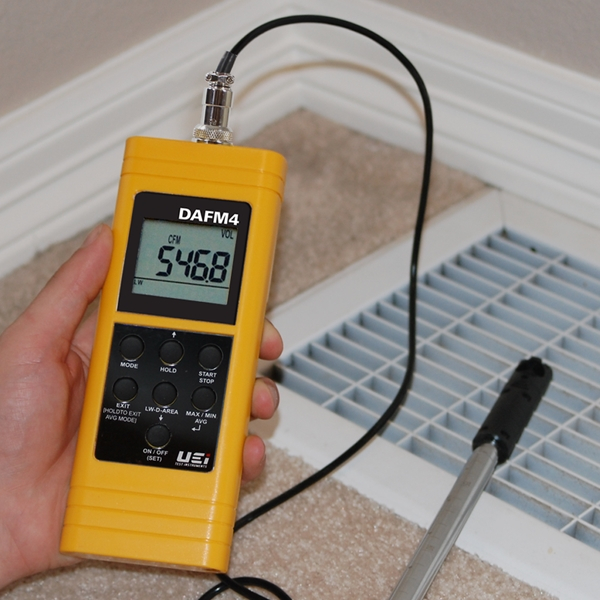

• Test supply and return grills
• Induct measurements
• Average to allows user to get more complete readings
• Get results in enough or metric scales

The UEi DAFM4 is the tool for all your air flow measurement needs.

The DAFM4 allows you to directly capture air temperature, relative humidity and air velocity readings. It also calculates wet bulb temperature, dew point temperature and air volume. Enter duct dimensions for live or timed average of air flow in CFM (or CMM), or use the effective area of a grill for outlet volume measurements. Air volume is displayed in real-time, or choose a timed average with start/ stop capabilities to traverse ductwork.
