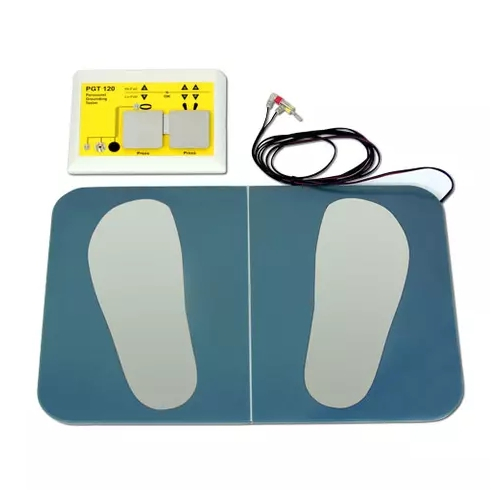

Transforming Technologies, 7100.PGT120.TEST.FR, Warmbier Data Logging ESD Tester
Features:
- Independently Test Footwear & Wrist
- Strap Grounding Products
- Network Ready and Results are
- Stored in Database
- Automatically Test Footwear in
- Hands-Free Mode
- Can be Integrated into with other devices such as Door/Barrier Opening
The PGT120.COM ESD grounding tester takes quick and accurate resistance measurements of ESD wrist straps, ESD footwear, heel grounders and smocks and stores test data on a computer. Data logging ESD test information in a computer database eliminates a paper log, where the operators must hand write ESD test information and you must relie on the honor system for compliance. The unit operates with 3 independent measuring circuits which allows the wrist straps and heel grounders be to tested individually and simultaneously.
Data Acquisition
Having access to this information digitally is extremely valuable to your quality program. Manipulate the data with the easy to use SQLlite, a open source data base management program that is one of the most widely deployed database engines in the world or export the data to excel. Learn information like if the technician passed or failed, how often they had to retest, how long your ground products actually last and much more. This system is perfect for a team of just a few technicians or a large team of up to 50,000 people.
A modular system
The PGT120.COM is a fully functioning ESD tester that can be upgraded to data logging at any time. There are several options for Human Input Devices (HIDs) (that allow for employees to input their IDs) and the system works with most USB devices so existing HIDs can be used or changed if your company’s systems change. A keypad is used to input employee IDs for simple programs, or use bar code scanners, card swipes or RFID readers for more complex programs.
Hands Free Test Mode
ESD footwear such as heel grounders or ESD shoes can be measured in a hands free mode which means that the staff members are tested automatically when standing on the plate – No Button Press Needed!
100volt Test Circuit
The PGT120 uses a 100volt test circuit (by default) which is the same voltage used for qualification tests. Using 100 volts allows the PGT120 to test all materials consistently, reduces false failures and ensures comliance to ANSI ESD S.2020. Test voltage is also selectable. DIP switches on the PGT120 can adjust the voltage to either 30V or 50V.
USB Connected Accessories
Pair the unit with the PGT120.COM Data Terminal and you receive real-time ESD testing with personnel identification, access control and central data maintenance. Also connect to a number of accessories such as a label printer, bar code scanner, RFID, database server and much more.
