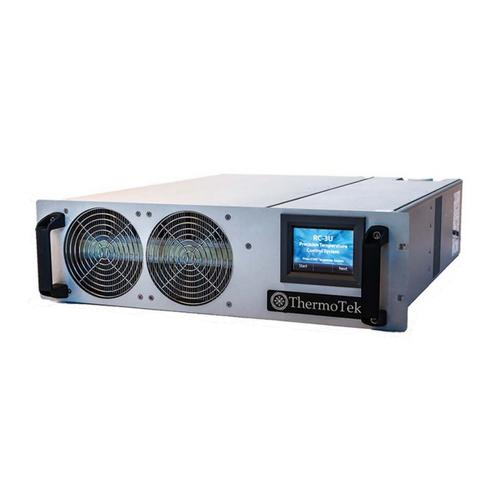

ThermoTek 0P9RC22A25020R0-XSC RC22A250-20R0 Thermoelectric Chiller

Flow Meter: No, Power: 240 Watts
  • Brand ThermoTek
  • Part # 0P9RC22A25020R0-XSC
  • Model # RC22A250-20R0-XSC
  • Condition
    Brand New
Availability
4-6 Weeks Factory Lead Time
Check Availability
Quantity
Share:

Options and Related Products

Flow Meter:
Flow Meter: No
Power:
Power: 240 Watts

ThermoTek, 0P9RC22A25020R0-XSC, RC22A250-20R0-XSC Thermoelectric Chiller 240 Watts

3U Rack Mount Thermoelectric Chiller ThermoTek’s 3U Rack Mount thermoelectric chiller is offering in our high-performance line of solid-state chillers. Chiller incorporate standard features like fan speed control for reduced noise, a touch-screen interface and RS-232 and USB connectivity. And designed with the same ThermoTek reliability and performance you have come to expect, this chiller will satisfy your most demanding cooling applications.

Features:

  • Only 3U tall (5.25")
  • Touch screen interface
  • Low noise and vibration
  • Integrated front handles
  • Universal power supply
  • Leak-free QD fittings
  • USB and RS-232 connectivity
  • Mating quick disconnect male fittings for use with 3/8" ID tubing included

Applications:

  • Laser Cooling
  • X-Ray Systems
  • Medical Equipment
  • Semiconductor
  • Analytical Equipment
  • Defense Applications
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Chassis Depth22" Deep
Pump Pressure (max)1.0 bar (15psi)
Pump Max Flow Rate3.8 LPM
Pump TypeCentrifugal
Flow MeterNo
Remote Temp Sensing capabilityNo
Fan Speed ControlYes
Electrical InterlockNo
Cooling Capacity240 watts
At 0 Delta T818 Btu/hr
Temperature Stability+/- 0.1C
Temperature Range-5 to +45C
CommunicationRS-232 & USB
Noise65 dBa* (55 dBa)**
Heating CapabilityYes
Input Voltage100-240 VAC 50/60 Hz
Max Input Power633 watts
Dimensions (Inches)19 x 5.25 x 22
Weight33 lbs (15 kg)
* Integrated Fan Speed Control disabled and pump drive set to 80%** Integrated Fan Speed Control active and Pump Drive set to 80%
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Chassis Depth22" Deep
Pump Pressure (max)1.0 bar (15psi)
Pump Max Flow Rate3.8 LPM
Pump TypeCentrifugal
Flow MeterNo
Remote Temp Sensing capabilityNo
Fan Speed ControlYes
Electrical InterlockNo
Cooling Capacity240 watts
At 0 Delta T818 Btu/hr
Temperature Stability+/- 0.1C
Temperature Range-5 to +45C
CommunicationRS-232 & USB
Noise65 dBa* (55 dBa)**
Heating CapabilityYes
Input Voltage100-240 VAC 50/60 Hz
Max Input Power633 watts
Dimensions (Inches)19 x 5.25 x 22
Weight33 lbs (15 kg)
* Integrated Fan Speed Control disabled and pump drive set to 80%** Integrated Fan Speed Control active and Pump Drive set to 80%
Note

Note: Please read description carefully. Do not base your order on the picture presented.
