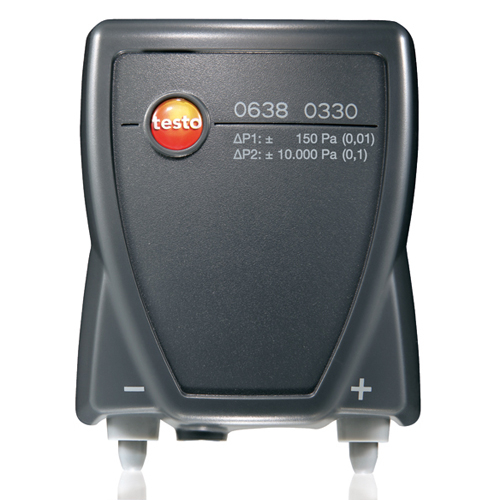

Buy Testo 0638 0330, Fine Pressure Probe for 330 Instrument

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Includes

Features

Carrying out heating system checks and 4 pascal measurement with compatible flue gas analyzer and accessories
Simultaneous measurement of gas pressure and flue gas values
No zero point drift during pressure measurement (cyclic zeroing)

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Characteristic	Values
Parameter	Differential pressure	via internal sensor
Parameter	Temperature	via external thermocouple Typ K (accessory)
Calculated variables	Flow	Display range: 0.15 to 3 m/s Resolution: 0.1 m/s
Differential pressure measurement	Measuring range	-9999.9 Pa to 9999.9 Pa
	Resolution	0.01 Pa (-149.99 Pa to 149.99 Pa) 0.1 Pa (rest of measuring range)
	Accuracy	±0.3 Pa (0 to 9.99 Pa) ±3% of reading (10.00 to 9999.9 Pa) additionally ±1 digit
	Measuring rate	max. 1/s
	Zero point drift	none (cyclical zeroing)
Temperature measurement	Measuring range	Depends on probe, max. -40 °C to +1200 °C
	Resolution	0.1 °C
	Accuracy	±0.5 °C (-40 to 100 °C) ± 0.5% of reading (rest of measuring range) additionally ±1 digit, additionally accuracy of probe
	Measuring rate	max. 1/s
Temperature measurement with surface probe 0604 0994 (accessory)	Measuring range	-200 to 300 °C
	Resolution	0.1 °C
Operating temperature		5 to 45 °C
Storage/transport temperature		-20 to 50 °C
Humidity		10 to 90% RH non-dewing
Protection class		IP 40
Warranty		2 years

Characteristic	Values
Parameter	Differential pressure	via internal sensor
Parameter	Temperature	via external thermocouple Typ K (accessory)
Calculated variables	Flow	Display range: 0.15 to 3 m/s Resolution: 0.1 m/s
Differential pressure measurement	Measuring range	-9999.9 Pa to 9999.9 Pa
	Resolution	0.01 Pa (-149.99 Pa to 149.99 Pa) 0.1 Pa (rest of measuring range)
	Accuracy	±0.3 Pa (0 to 9.99 Pa) ±3% of reading (10.00 to 9999.9 Pa) additionally ±1 digit
	Measuring rate	max. 1/s
	Zero point drift	none (cyclical zeroing)
Temperature measurement	Measuring range	Depends on probe, max. -40 °C to +1200 °C
	Resolution	0.1 °C
	Accuracy	±0.5 °C (-40 to 100 °C) ± 0.5% of reading (rest of measuring range) additionally ±1 digit, additionally accuracy of probe
	Measuring rate	max. 1/s
Temperature measurement with surface probe 0604 0994 (accessory)	Measuring range	-200 to 300 °C
	Resolution	0.1 °C
Operating temperature		5 to 45 °C
Storage/transport temperature		-20 to 50 °C
Humidity		10 to 90% RH non-dewing
Protection class		IP 40
Warranty		2 years

Note: Please read description carefully. Do not base your order on the picture presented.
