Buy Testo 0563 0409, 400 Comfort Kit

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

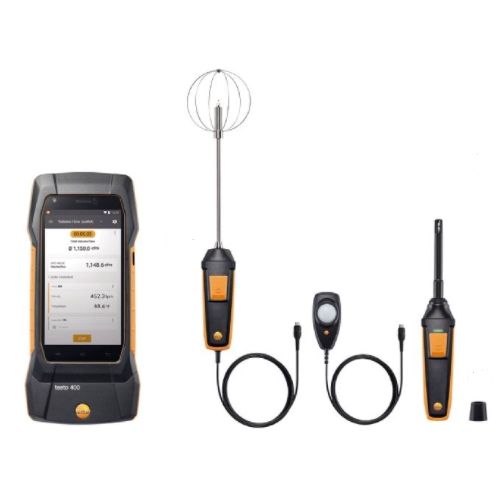

Package Includes:: Package Includes: Comfort Kit

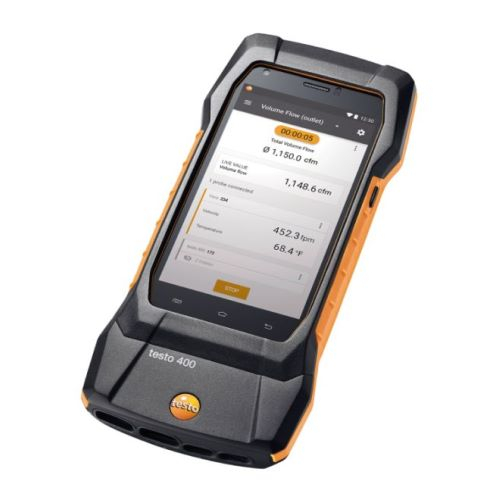

testo 400 is the universal measuring instrument for all TAB / Commissioning and IAQ professionals, enabling them to measure, document and analyze all IAQ parameters with just one instrument.

As consultants, experts, technical service providers, or service technicians in the air conditioning and ventilation sector, the testo 400 therefore support sin the truly smart performance of measuring tasks. Relevant quality parameters in industrial production and manufacturing processes can also be reliably and accurately checked using the testo 400.

Features:

Smart support through stored measurement menus and evaluation of measuring values according to the traffic light principle – for error-free measurements
Manage all the relevant customer data, including measuring points, directly in the instrument - work directly and efficiently on site
Complete and send measuring values with full documentation, including photos, comments andown logo directly on site – get to the next job faster
Probe heads can be changed without restarting the instrument – easy handling with no lost time
Calibration of probes which is independent of the measuring instrument and adjustment function at up to six measuring points for zero-error display – fewer downtimes and high-precision measurements

Applications:

Air flow measurements: Flow measurements in ducts, at outlets and on filters as per ASHRAE 111
High-precision, location-independent and built-in differential pressure sensor, smart and intuitive measurement programs for IAQ measurements in accordance with the standards, creation of documentation on site, e-mailing of reports.
Measurements in laboratories and clean rooms: Flow measurements in fume cupboards, differential pressure measurements and laminar flow measurements in clean rooms, humidity measurements in clean rooms

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Temperature - NTC
Measuring range	-40.0° to 302.0 °F / -40 to +150 °C
Accuracy	±0.4 °F ±1 Digit (-13° to 166.8 °F) / ±0.2 °C ±1 Digit (-25 to +74.9 °C) ±0.7 °F ±1 Digit (-40° to -13.2 °F) / ±0.4 °C ±1 Digit (-40 to -25.1 °C) ±0.7 °F ±1 Digit (75° to 211.8 °F) / ±0.4 °C ±1 Digit (+75 to +99.9 °C) ±0.5 % of mv ±1 Digit (Remaining Range)
Resolution	0 °F / 0.1 °C
Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
Accuracy	±(0.5 °F + 0.1 % of mv) ±1 Digit / ±(0.3 °C + 0.1 % of mv) ±1 Digit
Resolution	0.1 °F / 0.1 °C
Differential pressure (internal sensor) - Piezoresistive
Measuring range	-40 to +80 InH2O / -100 to +200 hPa
Accuracy	±(0.0 InH2O + 1 % of mv) ±1 Digit (0 to 25 InH2O) / ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa) ±(0.0 InH2O + 1.5 % of mv) ±1 Digit (10.000 to 80 InH2O) / ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa)
Resolution	0.000 InH2O / 0.001 hPa
Absolute Pressure (internal sensor and external probe)
Measuring range	280 to 440 InH2O / 700 to 1100 hPa
Accuracy	±1 InH2O / ±3 hPa
Resolution	0.1 InH2O / 0.1 hPa
General technical data
Weight	17.99 oz. (instrument) / 510 g (instrument)
Dimensions	8.3 x 3.7 x 1.5 in. (LxWxH) / 210 x 95 x 39 mm (LxWxH)
Operating temperature	23.0° to 113.0 °F / -5 to +45 °C
Housing	Plastic
Protection class	IP40
Connectable probes	4 x digital Bluetooth probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
Product colour	black/orange
Camera image size	Main camera: 8.0 MP; Front camera: 5.0 MP
Battery life	approx. 10 hrs continuous operation
Display type	5.0" touch display, HD 1280*720 pixels, IPS (160 k)
Power supply	Rechargeable li-ion battery (5550 mAh)
Interface	Bluetooth; USB; WLAN
Memory	2 GB; 1,000,000 measuring values
Storage temperature	-4.0° to 140.0 °F / -20 to +60 °C
Turbulence probe (digital) - wired General technical data
Storage temperature	-4° to 140 °F / -20 to +60 °C
Weight	8.8 oz. / 250 g
Dimensions	15.7 x 3.5 x 3.5 in. / 400 x 90 x 90 mm
Operating temperature	32° to 122 °F / 0 to +50 °C
Cable length	4.593 ft. / 1.4 m
Probe head diameter	32.283 in. / 820 mm
Product colour	black/orange
Standards	EN ISO 7730 / ASHRAE 55
Temperature - NTC
Measuring range	32° to 122 °F / 0 to +50 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Absolute Pressure
Accuracy	±1.2 InH2O / ±3.0 hPa
Resolution	0.1 InH2O / 0.1 hPa
Velocity - Hot wire anemometer
Measuring range	0 to 984 fpm / 0 to 5 m/s
Accuracy	±(5.91 fpm + 4 % of mv) / ±(0.03 m/s + 4 % of mv)
Resolution	1.97 fpm / 0.01 m/s
Lux probe (digital) - for measuring illuminance, wired Light
Measuring range	0 to 100000 Lux 0 to 9300 ftc
Accuracy	DIN 13032-1 Appendix B F1 = 6 % = V(Lambda) adjustment F2 = 5 % = cos-true evaluation Class C according to DIN 5032-7
Resolution	0.1 Lux (< 10000 ) 1 Lux (> 10000 )
General technical data
Storage temperature	-4° to 122 °F / -20 to +50 °C
Weight	3.9 oz. / 110 g
Dimensions	4.3 x 2.2 x 0.9 in. / 110 x 55 x 22 mm
Operating temperature	32° to 122 °F / 0 to +50 °C
Cable length	4.593 ft. / 1.4 m
Product colour	Black

Product Details

Temperature - NTC
Measuring range	-40.0° to 302.0 °F / -40 to +150 °C
Accuracy	±0.4 °F ±1 Digit (-13° to 166.8 °F) / ±0.2 °C ±1 Digit (-25 to +74.9 °C) ±0.7 °F ±1 Digit (-40° to -13.2 °F) / ±0.4 °C ±1 Digit (-40 to -25.1 °C) ±0.7 °F ±1 Digit (75° to 211.8 °F) / ±0.4 °C ±1 Digit (+75 to +99.9 °C) ±0.5 % of mv ±1 Digit (Remaining Range)
Resolution	0 °F / 0.1 °C
Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
Accuracy	±(0.5 °F + 0.1 % of mv) ±1 Digit / ±(0.3 °C + 0.1 % of mv) ±1 Digit
Resolution	0.1 °F / 0.1 °C
Differential pressure (internal sensor) - Piezoresistive
Measuring range	-40 to +80 InH2O / -100 to +200 hPa
Accuracy	±(0.0 InH2O + 1 % of mv) ±1 Digit (0 to 25 InH2O) / ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa) ±(0.0 InH2O + 1.5 % of mv) ±1 Digit (10.000 to 80 InH2O) / ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa)
Resolution	0.000 InH2O / 0.001 hPa
Absolute Pressure (internal sensor and external probe)
Measuring range	280 to 440 InH2O / 700 to 1100 hPa
Accuracy	±1 InH2O / ±3 hPa
Resolution	0.1 InH2O / 0.1 hPa
General technical data
Weight	17.99 oz. (instrument) / 510 g (instrument)
Dimensions	8.3 x 3.7 x 1.5 in. (LxWxH) / 210 x 95 x 39 mm (LxWxH)
Operating temperature	23.0° to 113.0 °F / -5 to +45 °C
Housing	Plastic
Protection class	IP40
Connectable probes	4 x digital Bluetooth probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
Product colour	black/orange
Camera image size	Main camera: 8.0 MP; Front camera: 5.0 MP
Battery life	approx. 10 hrs continuous operation
Display type	5.0" touch display, HD 1280*720 pixels, IPS (160 k)
Power supply	Rechargeable li-ion battery (5550 mAh)
Interface	Bluetooth; USB; WLAN
Memory	2 GB; 1,000,000 measuring values
Storage temperature	-4.0° to 140.0 °F / -20 to +60 °C
Turbulence probe (digital) - wired General technical data
Storage temperature	-4° to 140 °F / -20 to +60 °C
Weight	8.8 oz. / 250 g
Dimensions	15.7 x 3.5 x 3.5 in. / 400 x 90 x 90 mm
Operating temperature	32° to 122 °F / 0 to +50 °C
Cable length	4.593 ft. / 1.4 m
Probe head diameter	32.283 in. / 820 mm
Product colour	black/orange
Standards	EN ISO 7730 / ASHRAE 55
Temperature - NTC
Measuring range	32° to 122 °F / 0 to +50 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C
Absolute Pressure
Accuracy	±1.2 InH2O / ±3.0 hPa
Resolution	0.1 InH2O / 0.1 hPa
Velocity - Hot wire anemometer
Measuring range	0 to 984 fpm / 0 to 5 m/s
Accuracy	±(5.91 fpm + 4 % of mv) / ±(0.03 m/s + 4 % of mv)
Resolution	1.97 fpm / 0.01 m/s
Lux probe (digital) - for measuring illuminance, wired Light
Measuring range	0 to 100000 Lux 0 to 9300 ftc
Accuracy	DIN 13032-1 Appendix B F1 = 6 % = V(Lambda) adjustment F2 = 5 % = cos-true evaluation Class C according to DIN 5032-7
Resolution	0.1 Lux (< 10000 ) 1 Lux (> 10000 )
General technical data
Storage temperature	-4° to 122 °F / -20 to +50 °C
Weight	3.9 oz. / 110 g
Dimensions	4.3 x 2.2 x 0.9 in. / 110 x 55 x 22 mm
Operating temperature	32° to 122 °F / 0 to +50 °C
Cable length	4.593 ft. / 1.4 m
Product colour	Black
