T28010-APC Includes Only:
- 1x SC connector adaptor (OPT046) 1 per port
- 1x Operation manual
- 1x QA certificate
- 1 set ILAC/ NATA traceable calibration certificates
- 1x Carry Pouch
- 1x Carry strap
- 1x 50 & 62.5 µm fiber mandrel wrap set for Multimode sources (OPT701)
- 1x USB-A to USB-micro type cable
Test Applications
- Mixed single mode, multimode & POF testing to 6 l
- Multi-Fiber polarity checking and fiber identification
- Encircled Flux compliant testing
- Tone source for fiber identifier
- Innovative and useful VisiTester feature
Features:
- Easy to use, rugged & versatile
- Long battery life, micro USB power/charger
- Interchangeable connectors with dust cap & tilt bail
- Superior re-connection repeatability, < 0.1 dB
- Excellent stability
- Autotest & Multi-Fiber ID Tone generator
- Full QA & test reports ISO/IEC 17025 traceable

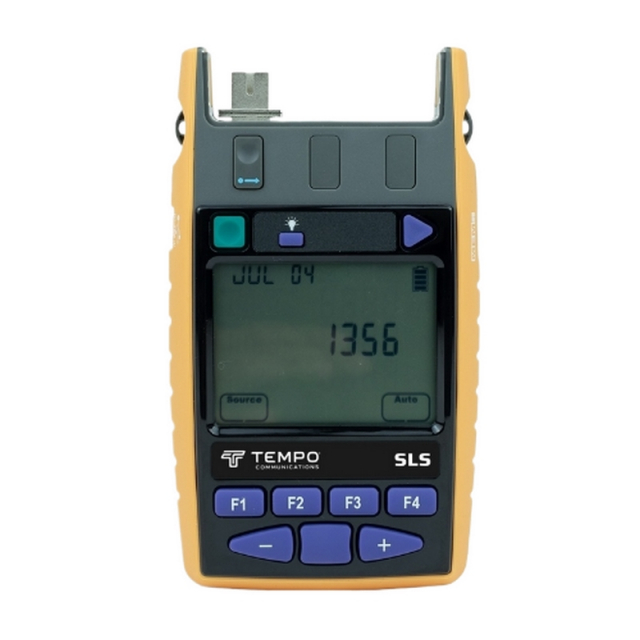

This triple laser source is a general purpose test source for single mode systems with an APC connector, at 1310-1550-1625 nm. Typical applications include fiber optic attenuation measurement, polarity testing and fiber identification on critical systems.
The T2800 series Handheld Fiber Sources are used with an Optical Power Meter to test loss on single mode, multimode & POF optical fiber systems, at up to 6 wavelengths.The 2800 series provide excellent stability. High productivity, high availability and ease of use combine to achieve superior measurement confidence. The innovative and unique VisiTester option is helpful for general loss testing,continuity testing & fault finding. These Autotest sources can be used with any Kingfisher Autotest optical power meter, loss test set or two-way tester.
