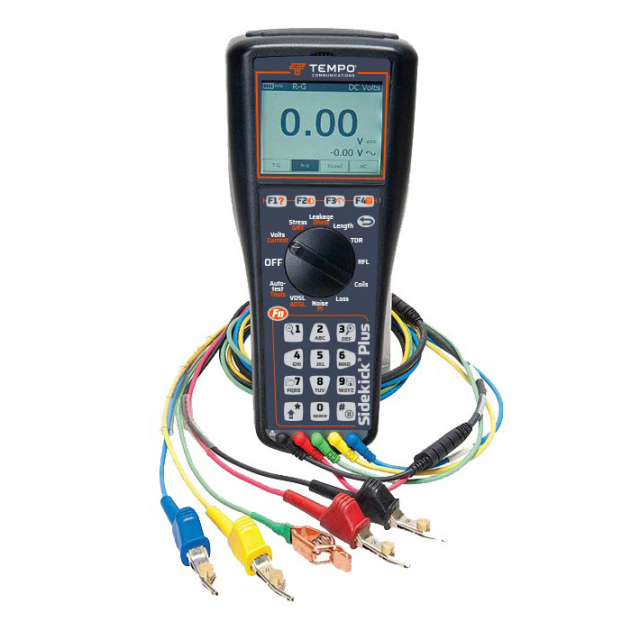

Tempo, 1155-5011, Sidekick Plus Cable Maintenance Test Set, Wideband and VDSL/ADSL, SCC

Features:

The Sidekick® Plus test set facilitates the technician's work in the field.
By combining the functions of a voltohmmeter, longitudinal balance tester, and open meter with five transmission and noise tests, this tool reduces repeat reports and improves quality of service.
The Sidekick® Plus test set's intuitive user interface and USB communication make it necessary equipment for field work.
This test set is a compact, battery-powered instrument that can be conveniently held in the technician's hand.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Basic Telco Testing
AC Volts	250Vrms
DC Volts	300VDC
AC and DC Current	110mA
Stress	82dBrnC
Earth / Ground Resistance Test	250Ω
Longitudinal Balance	+100dB to +20dB
Resistance	100MΩ
Leakage / Insulation	999MΩ
Capacitance / Length	>100km
Pulse TDR	10km
RFL	>60km
Load Coil Detect	5
DSL Testing
DSL Showtime with Graphs (Bits per Tone, SNR etc)	Yes
Transport Layer (PPPoE, Bridged Mode etc)	Yes
IP Layer Tests (Ping, HTTP and FTP etc)	Yes
Vectoring
Vectoring	Yes
Step TDR
Step TDR	500m
Impulse Noise
C Filter	+5 to -60dBm
E, F, G, V9, V17 and V35 Filters	+5 to -60dBm
Loss (SLM)
4kHz 600Ω	-70dBm
8.8MHz 75Ω, 100Ω, 135Ω	-50dBm
Noise
C Filter	0 to -90dBrnC
E, F, G, V9, V17 and V35 Filters	0 to -70dBrnC
Power Influence
C Filter	+110 to 30dBrnC
G Filter	+20 to -60dBm
Balance
Balance	20 to 90dB
Noise Spectrum Analyzer
C Filter	+90 to 0dBrnC
E, F, G, V9, V17 and V35 Filters	0 to -90dBm
Power Influence Spectrum Analyzer
C Filter	+110 to 30dBrnC
G Filter	+20 to -60dBm
Tone Generator
Simplex	500Hz-3500Hz
Metallic	500Hz-3500Hz
Voiceband: 600Ω	200Hz-20kHz
Wideband: 75Ω, 100Ω, 135Ω	20kHz-4.4MHz
Auto Test
Pass/Fail	Yes
Specific Test Scripts	Yes

Notes
