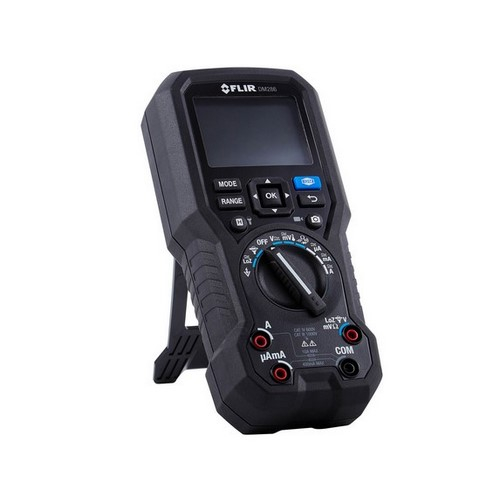

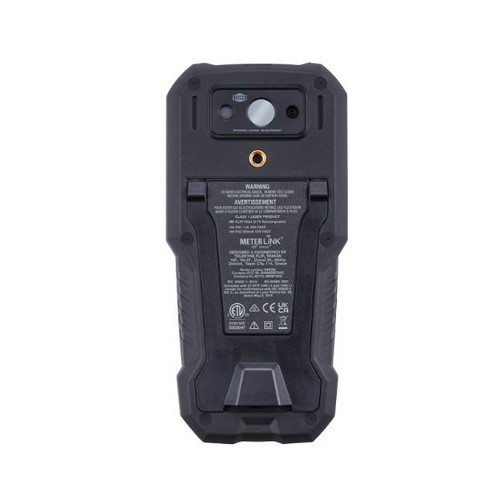

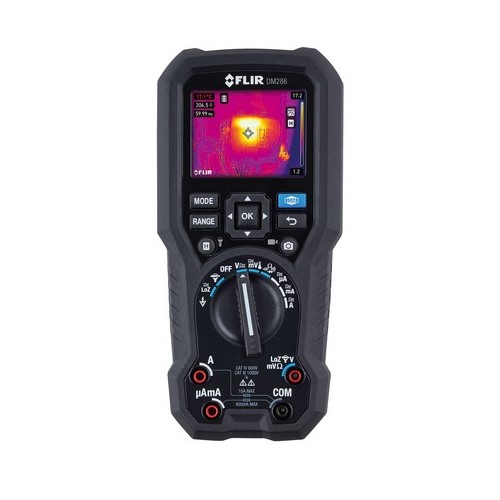

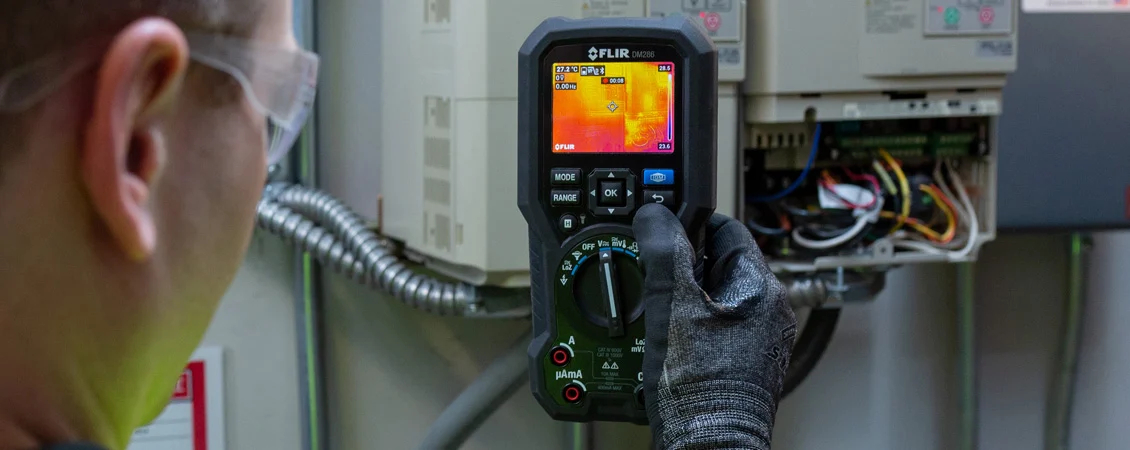

| Thermal Imaging |
| Thermal Imaging Dectector | FLIR Lepton® microbolometer |
| (IR) Imaging | - Resolution: 160 x 120 (19,200 pixels)
- Field of view: 57 x 44°
- Spectral response: 8 to 14 µm
|
| Thermal Sensitivity | 150 mK (0.15°C) |
| IR Image | - Capture frequency: 9 Hz
- Color palettes: Iron, rainbow, arctic, white hot, and black hot
|
| Laser Pointer | - Type: Class I (red)
- Power: ≤0.39 mW
|
| Laser Wavelength | 640 to 660 nm |
| IR Temperature | - Measurement range: 23 to 572°F (-5 to 300°C)
- Resolution: 0.1°F (0.1°C)
- Accuracy: 5.4°F (±3°C) or ±3% of the reading (whichever is greater) for temperatures 77°F (>25°C)
- ±5°C for temperatures 14 to 77°F (-10 to 25°C)
|
| Emissivity Adjustment | 0.1 to 1 (default is 0.95); select from four presets or set manually |
| Scanning and Targeting | Continuous scan. Crosshairs and laser pointer targeting. |
| Data Hold | The displayed reading is suspended |

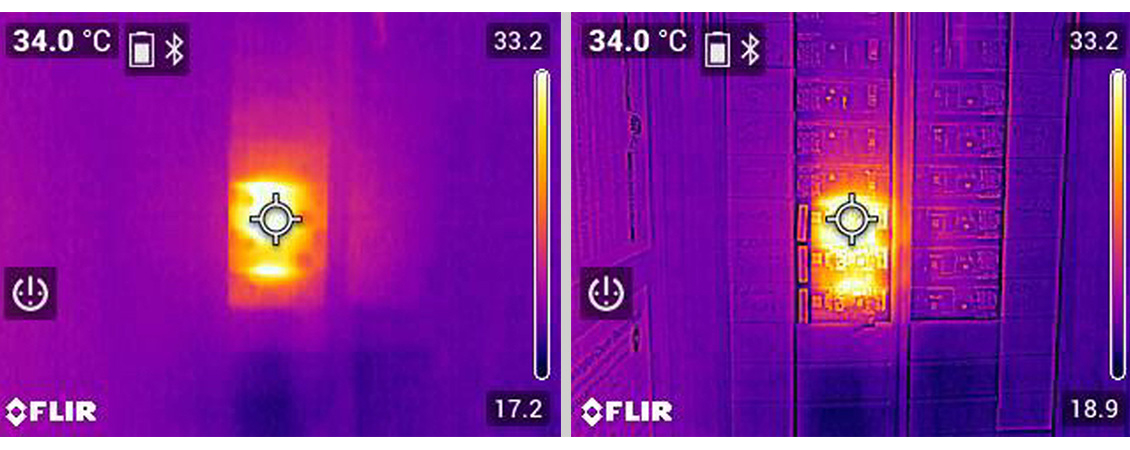

| Image Modes | - Thermal MSX (Multi Spectral Dynamic Imaging)
- Thermal camera only
- Digital camera only
|
| Worklight | 1 x LED |
| Visual Imaging |
| Resolution | 2 MP (1600 x 1200 pixels) |
| Focus | Fixed |
| Field of View | 71 x 56° |
| Display | 2.8" (71.12 mm) |
| Surface Brightness (cd/m2) | 362 |
| Screen Brightness | High/medium/low |
| Electrical Measurement |
| Display Count | 6000 |
| AC/DC V | - 1000 V AC RMS ±(1% + 3)
- 1000 V DC ±(0.09% + 3)
|
| AC/DC mV | - AC 600 mV ±(1% + 3)
- DC 600.0 mV ±(0.2% + 3)
|
| VFD AC V | 1000 V AC RMS, ±(1.3% + 4) at 45 to 65 Hz |
| AC/DC LoZ V | 1000 V AC RMS or 1000 V DC ±(1.3% + 4) |
| AC/DC A | - 10 A AC RMS ±(1.5% + 3)
- 10 A DC ±(1% + 3)
|
| AC/DC mA range | - AC 400 mA ±(1.5% + 3)
- DC 400.9 mA ±(1% + 3)
|
| AC/DC µA range | - 4000 µA AC RMS ±(1.5% + 3)
- 4000 µA DC ±(1% + 3)
|
| Non-Contact Voltage Tester (NCV) | Yes |
| Frequency Counter | 100 kHz ±(0.1% + 5) |
| Resistance | 6 MΩ ±(0.9% + 5), 60 MΩ ±(3% + 5) |
| Continuity Check Threshold | 10 to 100 Ω |
| Diode Test | 1.5 V ±0.9% |
| Capacitance | 10 mF ±(4% + 5) |
| Temperature, Type K Thermocouple | - -40 to 752°F DMM ±(1% + 5.4°F)/IGM ±(1% + 9°F)
- -40 to 400°C DMM ±(1% + 3°C)/IGM ±(1% + 5°C)
|
| Measuring Rate | 3 samples per second |
| Over and Under‐Range Indication | OL |
| Static Datalogging and Storage |
| Data Storage Interval, Configurable | 1 to 99 seconds |
| Readings Per Memory Set | 40,000 |
| Thermal Image Storage |
| Storage Media | eMMC 4 GB |
| Image File Format | Radiometric |
| Maximum Number of Images | Up to 30,000 |
| Video Recording | - 50 minutes maximum duration
- 20 seconds maximum duration for file transmission
|
| Connectivity |
| Wireless Technology | Bluetooth BLE |
| Communications Protocol | METERLiNK |
| Bluetooth Range | 32' (10 m) |
| Meter Data |
| Category Rating | CAT IV-600 V, CAT III-1000 V |
| IP Rating | IP40 |
| Drop Test | 6.6' (2 m) |
| Calibration | Once per year, recommended |
| General Specifications |
| Operating Ambient Temperatures and Relative Humidity (RH) | - 14 to 86°F (-10 to 30°C), <85% RH
- 86 to 104°F (30 to 40°C), <75% RH
- 104 to 122°F (40 to 50°C), <45% RH
|
| Storage Temperature and RH | -4 to 140°F (-20 to 60°C), 0 to 80% RH (without batteries) |
| Temperature Coefficient | 0.1 x (specified accuracy)/°C, 64.4°F (<18°C), 82.4°F (>28°C) |
| Operating Altitude | 6560' (2000 m) |
| Pollution Degree | 2 |
| EMC | EN61326-1 |
| Power Requirements | TA04: Rechargeable, lithium-polymer battery (3.7 V, 3050 mAh) |
| Battery Life | - Approximately 6.5 hours in IGM mode with display brightness set to medium brightness
- Approximately 10 hours in Multimeter mode set to medium brightness
|
| Auto Power Off | - For meter: set to OFF, 2, 5, or 10 minutes
- For worklight only: set to OFF, 5, 15, or 30 minutes
|
| Certifications | ETL, FCC, CE, RCM, UKCA, FDA, EN60825, EN50689 |
| Safety Standards Compliance | IEC 61010-1 CAT IV-600 V, CAT III-1000 V |
| Dimensions | 7.9 x 3.8 x 2.2" (20 x 9.6 x 5.6 cm) |
| Weight | 1.25 lbs (569 g) without battery (approximately) |
