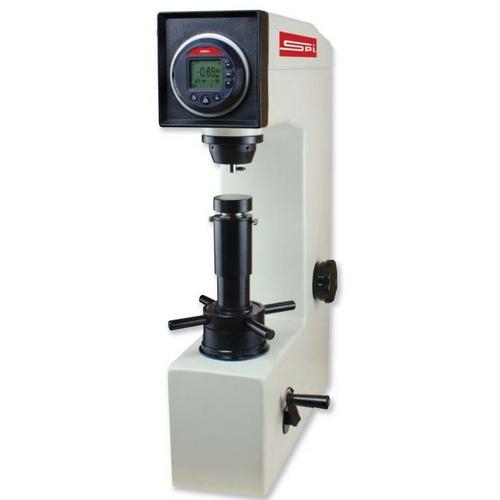

SPI 15-818-8 Digital Hardness Tester

Features:

• Use Rockwell A, B, C and F scales for measuring hardness.
• Standards: EN-ISO 6508 and ASTM-E18.
• Resolution: 0.5 of a Rockwell unit.
• Test Loads: 10 kgf preload; 60, 100, 150 kgf load.
• Measuring Range: 20 - 100 RH
• Testing Space: Vertical - 6.7"/170 mm; Horizontal - 6.5"/165 mm (from centerline)
• High quality precision instrument for measuring hardness with ease of operation; precise and durable.
• Contains large backlit display with load progress bar, automatic loading, unloading and holding of test force.
• Dimensions: 34" H x 17" W x 25" Depth

Accessories included:

• Diamond Rockwell indentor 1/4" shank
• Rockwell ball indentor: 1/16"
• ±60 HRC test block
• ±25 HRC test block
• ±85 HRC test block
• Flat anvil: 60 mm
• Large flat anvil: 150 mm
• V-Block anvil: 40 mm
• Adjustable feet
• Protective spindle cover
