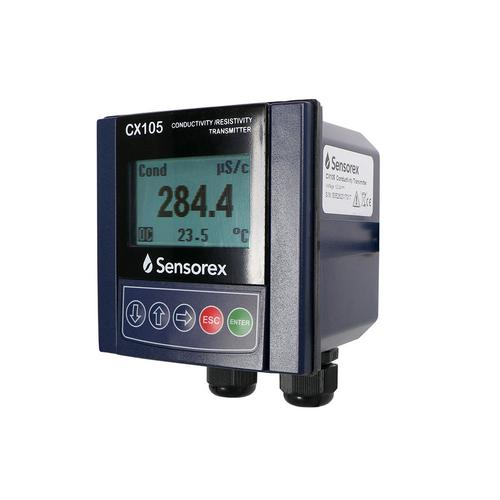

Sensorex CX105 4-20mA Conductivity Transmitter 24V DC Loop-Powered

Features: 24V DC Loop-Powered
  • Brand Sensorex
  • Part # CX105
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Features:
Features: 24V DC Loop-Powered

Our CX105 conductivity transmitter is an isolated output 4-20mA industrial transmitter for reading contacting conductivity sensors. The CX105 transmitter also measures Resistivity and TDS. Easily power the unit with available two-wire power supply loop. This transmitter is ideal for connecting to a PLC for advanced control systems. The CX105 has versatile mounting options for wall or panel mount. With a dual display LCD, monitoring both the measuring value and the temperature is simple.

Features

  • Dual display shows the measuring value and temperature
  • Compatible with a wide variety of contacting conductivity, resistivity, and TDS sensors
  • CE certified – compliant with European Community Standards
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller

Technical Details

Reviews
Display
LCD128*65 dot matrix, figure or alphabet: 12x8, 28x15, 32x18, etc.
Update rate1 second
ContrastUser selected, 5 levels
Measurement
Conductivity0.05 to 500,000 μS/cm
Resistivity1KΩcm to 18.3MΩcm
TDS0.023 to 200,000 ppm
Accuracy± 0.5% of reading
Repeatability± 0.05% of span
Temperature DriftZero and Span: ± 0.02% of span per° C
Electrical
Power19 -48VDC, regulated, 30mA maximum
Current Output
Isolated4-20 mA output with 0.004 mA (12-bit) resolution
Update Rate1 second
Maximum Loop Impedance250Ωat24V; 600Ωat31V; 1500Ωat48V
Memory
Non-volatileAll user settings are retained indefinitely without battery backup
Open-Collector Output
Isolated40 VDC max. pull-up voltage
Ambient Conditions
Operation-10 °C to 70 °C (14 °F to 158 °F); 0-95% relative humidity, non-condensing
Transport/storage-15°C to 80°C(5°F to 176°F); 0-95% relative humidity, non-condensing
Standards and Approvals
CECertified Compliant to European Community Standards.
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Display
LCD128*65 dot matrix, figure or alphabet: 12x8, 28x15, 32x18, etc.
Update rate1 second
ContrastUser selected, 5 levels
Measurement
Conductivity0.05 to 500,000 μS/cm
Resistivity1KΩcm to 18.3MΩcm
TDS0.023 to 200,000 ppm
Accuracy± 0.5% of reading
Repeatability± 0.05% of span
Temperature DriftZero and Span: ± 0.02% of span per° C
Electrical
Power19 -48VDC, regulated, 30mA maximum
Current Output
Isolated4-20 mA output with 0.004 mA (12-bit) resolution
Update Rate1 second
Maximum Loop Impedance250Ωat24V; 600Ωat31V; 1500Ωat48V
Memory
Non-volatileAll user settings are retained indefinitely without battery backup
Open-Collector Output
Isolated40 VDC max. pull-up voltage
Ambient Conditions
Operation-10 °C to 70 °C (14 °F to 158 °F); 0-95% relative humidity, non-condensing
Transport/storage-15°C to 80°C(5°F to 176°F); 0-95% relative humidity, non-condensing
Standards and Approvals
CECertified Compliant to European Community Standards.
Note

Note: Please read description carefully. Do not base your order on the picture presented.
