Maximum Exposure Range:: Maximum Exposure Range: 2mSv

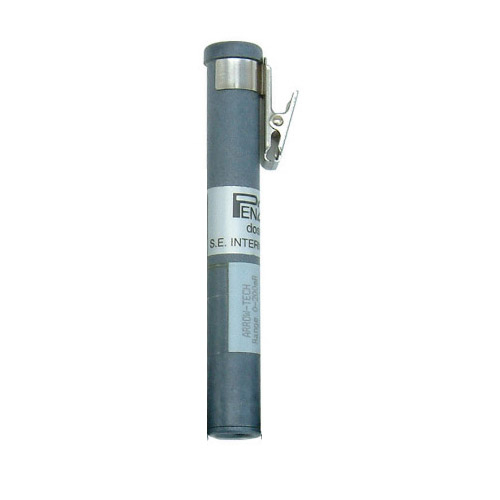

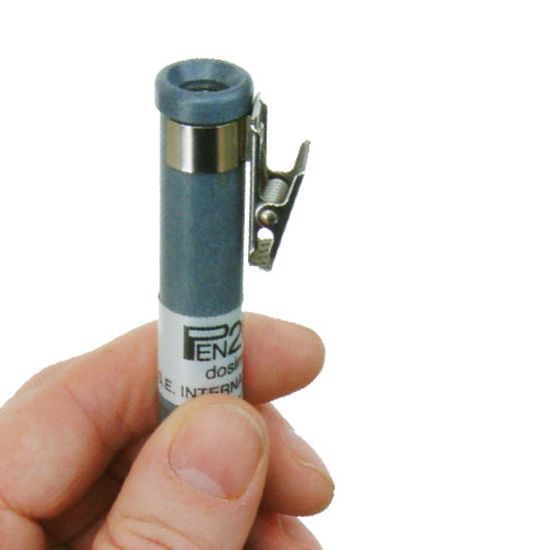

SE International, PEN2mSv, Pen Dosimeter with Scale Increment of 0.1mSvp

The advanced PEN direct reading dosimeters are rugged, precision instruments. They are higher quality and have greater reliability than other dosimeters of this type. They measure and directly read, at any time, accumulated dose (quantity of gamma and x-ray exposure). PEN dosimeters are designed to satisfy military specifications for the RADIAC METER IM-264/PD and ANSI N 13.5 and N322 requirements. A sturdy metal clip attaches the dosimeter to a pocket or any object to monitor total radiation exposure. They are hermetically sealed and immersion proof.

The Radiation Alert® PEN Dosimeters are easy to use, lightweight, and can be easily recharged with our dosimeter charger.

Note: Protective sapphire lens & Dosimeter Charger Sold Separately.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Resources

Reviews

Max. Exposure Range	0 to 2mSv
Energy Dependence	±10% maximum change in sensitivity for x and gamma ray energies from 16 keV to 6 MeV.
Electrical Leakage	In the absence of radiation, the dosimeters leakage or self discharge is less than 0.5% of full scale in 24 hours at 50° C. At 20° C dosimeters will read background radiation. After gross over exposure totaling up to 2000 R, the leakage is less than 5% of full scale in 48 hours at 20° C. Thereafter, the leakage will decrease to original values.
Charging Voltage	Dosimeters are capable of being charged to "zero" with 140 to 195 volts.
Operational Characteristics	A maximum change in sensitivity of ±10% may occur under any probable combination of the following: A) Temperature range below -20°C (-4°F) or above +50°C (122°F) B) Greater than 50,000 foot altitude for one month C) Relative humidity greater than 95% Highly resistant to shock and vibration.
Accuracy	±10% of true dose for Cs-137 or Co-60 gamma.
Rate Response	Dosimeters are dose rate independent.
Enclosure Material	Barrel - carbon fiber-filled, high-strength, electrically-conducting plastic with metal clip.
Weight	Approx. 0.04 lb (19 grams)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Max. Exposure Range	0 to 2mSv
Energy Dependence	±10% maximum change in sensitivity for x and gamma ray energies from 16 keV to 6 MeV.
Electrical Leakage	In the absence of radiation, the dosimeters leakage or self discharge is less than 0.5% of full scale in 24 hours at 50° C. At 20° C dosimeters will read background radiation. After gross over exposure totaling up to 2000 R, the leakage is less than 5% of full scale in 48 hours at 20° C. Thereafter, the leakage will decrease to original values.
Charging Voltage	Dosimeters are capable of being charged to "zero" with 140 to 195 volts.
Operational Characteristics	A maximum change in sensitivity of ±10% may occur under any probable combination of the following: A) Temperature range below -20°C (-4°F) or above +50°C (122°F) B) Greater than 50,000 foot altitude for one month C) Relative humidity greater than 95% Highly resistant to shock and vibration.
Accuracy	±10% of true dose for Cs-137 or Co-60 gamma.
Rate Response	Dosimeters are dose rate independent.
Enclosure Material	Barrel - carbon fiber-filled, high-strength, electrically-conducting plastic with metal clip.
Weight	Approx. 0.04 lb (19 grams)
