Options and Related Products

Type:: Type: 65′ 3-Way

022-11036 Includes Only:

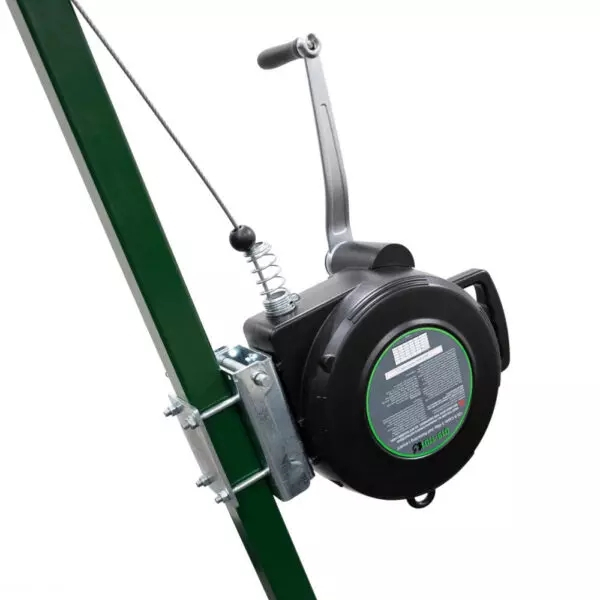

65′ 3-Way system for fall protection

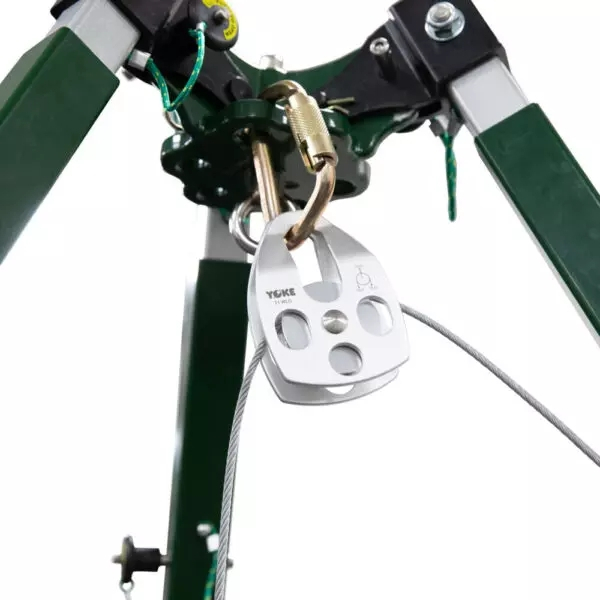

Aluminum pulley
Steel carabiner

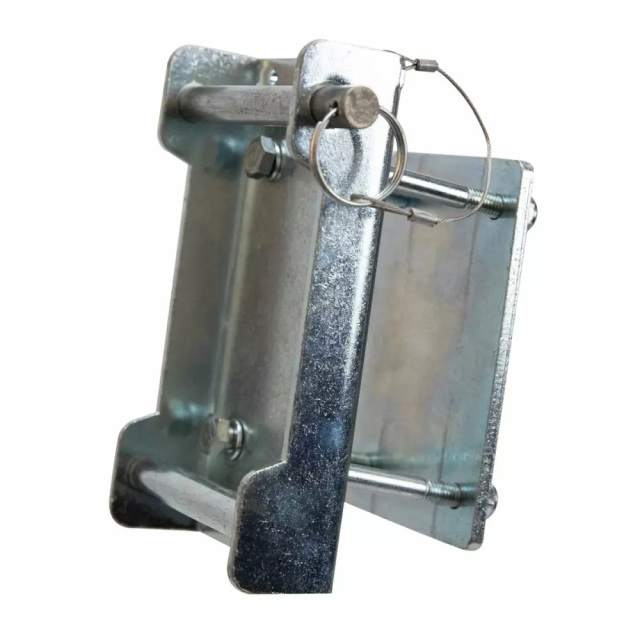

Universal mounting bracket
Safety chain and quick link
Heavy-duty storage bag with wheels for easy transport, multiple handles, padded shoulder strap and labeled pockets for organization

Features:

Lightweight yet durable aluminum construction

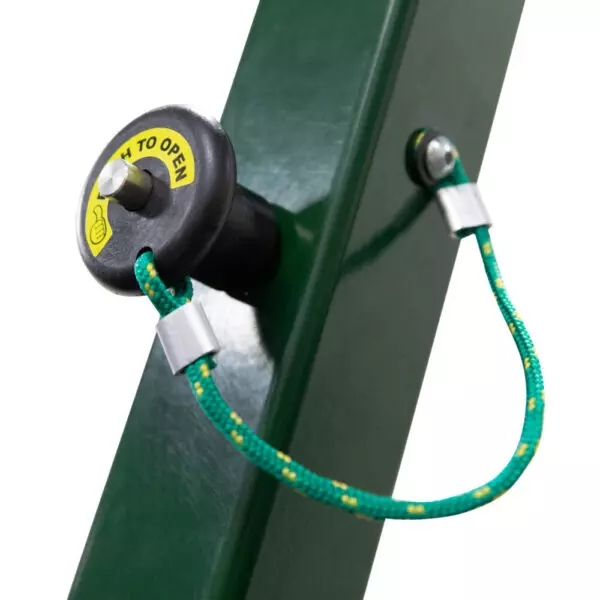

Quick setup with detent pins for easy height and diameter adjustment
Multiple stance configurations fit a variety of work zones, including an over-edge scenario
(7) Individual 5,000 lb. anchor points in head unit with a centered 360° captive eye

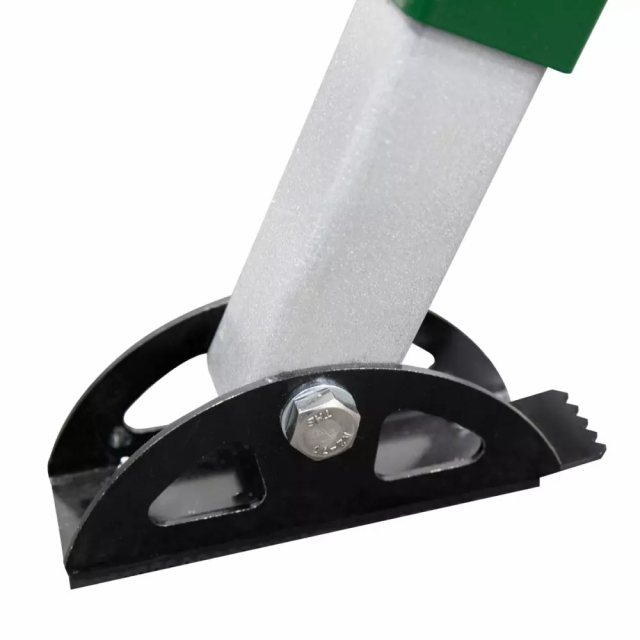

Secure foundation with rubber pads on multi-surface steel feet

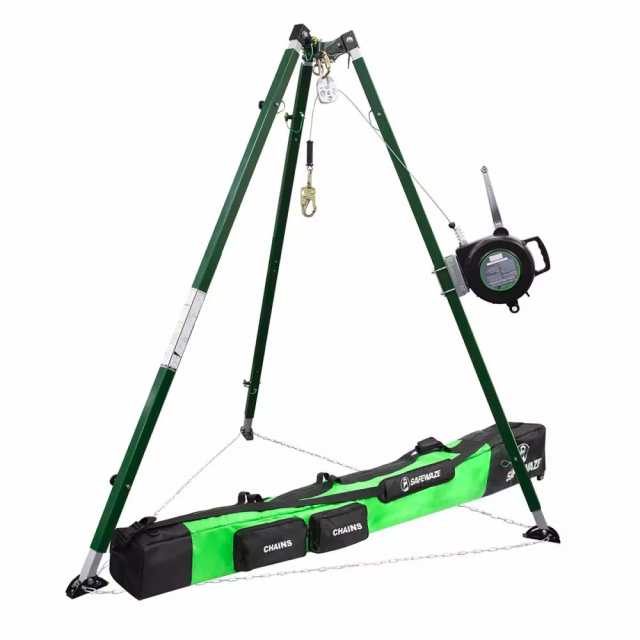

The 10′ Tech Tripod Kit: 65′ 3-Way is premium tripod with multiple configurations to fit a wide variety of work zones. The massive stance adjusts up to 18′ to cover confined space, trenches, bridges, mines, rescue, inspections and more. The unique design allows use in over-edge scenarios such as cliffs or vertical walls. This system is lightweight with quick setup and adjustability and includes a multi-function fall protection device.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Materials:	Aluminum tripod and head unit, stainless steel captive eye, powder coated steel feet with rubber foot pads, zinc plated steel chain and fasteners, nylon and stainless steel detent pins, aluminum pulley, plated steel carabiner and mounting bracket
3-Way System Materials:	Aluminum housing, plated steel and stainless steel components, galvanized steel cable, plastic handle
Packed Length:	97.2" (247 cm)
Packed Width:	12" (30.5 cm)
Working Height:	Tallest stance 119" (302.3 cm), Shortest stance 53.5" (135.9 cm)
Working Diameter:	Narrowest stance 86.6" (219.9 cm), Widest stance 218" (553.7 cm)
Weight:	100.9 lbs. (45.8 kg)
Tripod Attachment Points:	1 captive eye, 6 anchor points on tripod head
Minimum Breaking Strength:	5,000 lbs.
ANSI Weight Capacity:	130-310 lbs. (59-141 kg)
OSHA Weight Capacity:	Up to 420 lbs. (190 kg)
Maximum Material Capacity:	620 lbs. (281 kg)
ANSI Standards:	Z359.18-2017 Type T, Z359.4-2013, Z117.1-2022, Z359.14-2021
OSHA Standards:	1910.140, 1926.502

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Materials:	Aluminum tripod and head unit, stainless steel captive eye, powder coated steel feet with rubber foot pads, zinc plated steel chain and fasteners, nylon and stainless steel detent pins, aluminum pulley, plated steel carabiner and mounting bracket
3-Way System Materials:	Aluminum housing, plated steel and stainless steel components, galvanized steel cable, plastic handle
Packed Length:	97.2" (247 cm)
Packed Width:	12" (30.5 cm)
Working Height:	Tallest stance 119" (302.3 cm), Shortest stance 53.5" (135.9 cm)
Working Diameter:	Narrowest stance 86.6" (219.9 cm), Widest stance 218" (553.7 cm)
Weight:	100.9 lbs. (45.8 kg)
Tripod Attachment Points:	1 captive eye, 6 anchor points on tripod head
Minimum Breaking Strength:	5,000 lbs.
ANSI Weight Capacity:	130-310 lbs. (59-141 kg)
OSHA Weight Capacity:	Up to 420 lbs. (190 kg)
Maximum Material Capacity:	620 lbs. (281 kg)
ANSI Standards:	Z359.18-2017 Type T, Z359.4-2013, Z117.1-2022, Z359.14-2021
OSHA Standards:	1910.140, 1926.502

Note

Note: Please read description carefully. Do not base your order on the picture presented.
