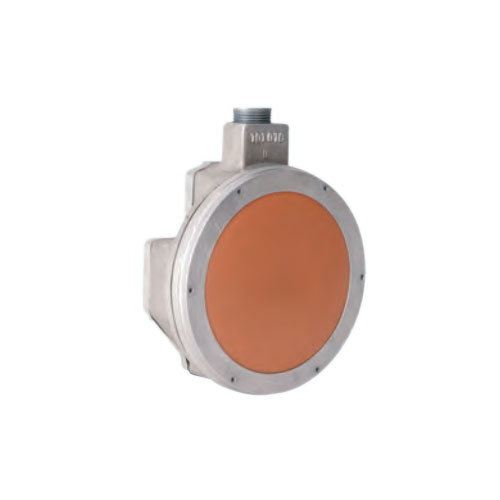

Ultra-Mag™ Explosion-Proof Ultra-Mag™ Level Switch, Suspended level switch, aluminum housing, Urethane diaphragm, SPDT switch
A unique Magnetic Linkage isolates the electrical compartment from controlled product, reducing maintenance and improving sensitivity. The sealed switch compartment and sealed leads yield the utmost in reliable operation. The dry level Ultra-Mag™ Level Switch is extremely sensitive and very economical. The magnetic linkage makes this simple explosion-proof diaphragm switch the most rugged and reliable level control for a variety of products.
Suspension Mounting is normally used for high level monitoring in vessels. For product over 20 lbs./cu. ft., the level switch (diaphragm face) should be located about 1/3 of the distance from the vessel wall to the point of entry of the product. For product less than 20 lbs./cu. ft., the unit should be located closer to the point of entry of the product, about 1/2 the distance from the vessel wall to the point of entry. Pressure required to depress the diaphragm and trip the switch is in the range of 5-15 oz in the horizontal direction (perpendicular to the diaphragm). Suspension mounting provides the easiest vertical adjustment capability, greatest sensitivity and best maintenance conditions.
