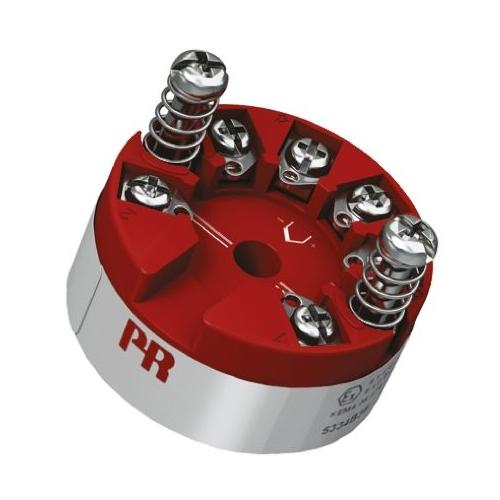

PR electronics 5334B3B 2-Wire Programmable Transmitter 7.2-30 V DC

Input: I.S. TC/mV
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Share:

Options and Related Products

Input:
Input: I.S. TC/mV

5334B3B, 2-Wire Programmable Transmitter 7.2-30 V DC

Features:

  • TC input
  • High measurement accuracy
  • Galvanic isolation
  • Programmable sensor error value
  • For DIN form B sensor head mounting

Application

  • Linearized temperature measurement with TC sensor.
  • Amplification of bipolar mV signals to a 4...20 mA signal, optionally linearized according to a defined linearization function.

Technical characteristics

  • Within a few seconds the user can program PR5334B to measure temperatures within all TC ranges defined by the norms.
  • Cold junction compensation (CJC) with a built-in temperature sensor.
  • Continuous check of vital stored data for safety reasons.

Mounting / installation

  • For DIN form B sensor head mounting.
  • NB: As Ex barrier we recommend 5104B, 5114B, or 5116B.
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Reseller

Technical Details

Optional Accessories
Reviews
Operating temperature-40°C to +85°C
Calibration temperature20...28°C
Relative humidity< 95% RH (non-cond.)
Protection degree (encl./terminal)IP68 / IP00
DimensionsØ 44 x 20.2 mm
Weight approx.50 g
Wire size1 x 1.5 mm2stranded wire
Screw terminal torque0.4 Nm
VibrationIEC 60068-2-6
2...25 Hz±1.6 mm
25...100 Hz±4 g
Supply voltage7.2...30 VDC
Internal power dissipation25 mW…0.8 W
Isolation voltage, test / working1.5 kVAC / 50 VAC
Response time (programmable)1...60 s
Voltage drop7.2 VDC
Warm-up time5 min.
ProgrammingLoop Link
Signal / noise ratioMin. 60 dB
EEprom error check< 3.5 s
AccuracyBetter than 0.05% of selected range
Signal dynamics, input18 bit
Signal dynamics, output16 bit
Effect of supply voltage change< 0.005% of span / VDC
EMC immunity influence< ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst< ±1% of span
Max. offset50% of selected max. value
Thermocouple typeB, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC)< ±1.0°C
Sensor error detectionYes
Sensor error current: When detecting / elseNom. 33 μA / 0 μA
Measurement range-12...150 mV
Min. measurement range (span)5 mV
Input resistance10 MΩ
Signal range4…20 mA
Min. signal range16 mA
Load (at current output)≤ (Vsupply - 7.2) / 0.023 [Ω]
Load stability≤ 0.01% of span / 100 Ω
Sensor error indicationProgrammable 3.5…23 mA
NAMUR NE43 Upscale/Downscale23 mA / 3.5 mA
Updating time440 ms
of span= of the presently selected range
EMC2014/30/EU
EACTR-CU 020/2011
ATEX 2014/34/EUKEMA 06ATEX0062X
IECExDEK 13.0035X
INMETRODEKRA 13.0001 X
CCOEP337392/2
EAC Ex TR-CU 012/2011RU C-DK.GB08.V.00410
DNV-GL MarineStand. f. Certific. No. 2.4
