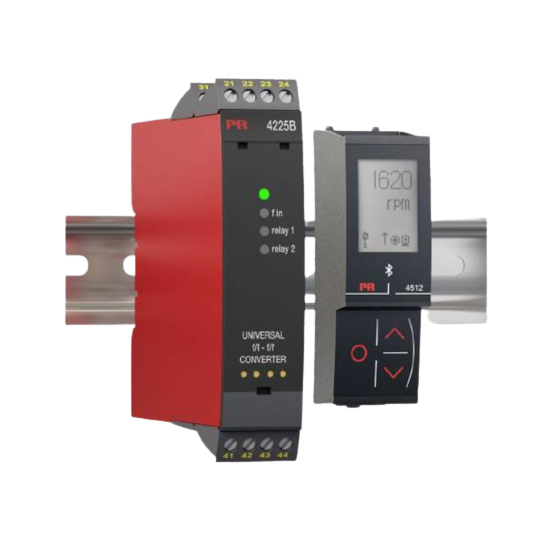

PR electronics, 4225A, Universal f/I-f/f Converter, 1 Analog Output, 1 Relay

Features:

Front programmable
Input: NAMUR, NPN, PNP, Tacho, TTL & S0
Output: Programmable bipolar mA / V, frequency or relay
Universal power supply 21.6...253 VAC / 19.2...300 VDC

Functional highlights:

Measures frequencies up to 100 kHz.
Active and passive current output ±23 mA / 0...23 mA.
Buffered voltage output ±10 VDC.
Linearization: Linear or square root function.
2-point process calibration.
Programmable trigger levels -0.05…6.5 V.
Programmable sensor supply 5…17 V.
NAMUR sensor error detection.
Advanced configurable input limits for increased safety.
Digital output: NPN & PNP; 0...100 kHz with programmable logic level 5…24 V.
Output relay with windows, setpoint and latch functionality.
Simulation of process value during commissioning and maintenance.
All terminals are over-voltage protected (24 VDC), polarity protected and short-circuit protected.

Technical highlights:

Accuracy < 0.06% / span.
Temperature coefficient 0.006% / °C.
Response time < 30 ms.
2.3 kVAC, 3-port galvanic isolation.
NAMUR NE21 and NE43.

Programming:

Configuration, monitoring and diagnostics using the PR 4500 detachable communication interfaces. Product-specific functionality includes communication via Modbus and Bluetooth using PR Process Supervisor (PPS) application, available for iOS and Android.
All programming can be password protected.
Scrolling help text in 7 languages.

Mounting:

Units can be mounted side by side, horizontally and vertically, without air gap on a standard DIN rail - even at 60°C ambient temperature.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Environmental Conditions
Operating temperature	-20°C to +60°C
Storage temperature	-20°C to +85°C
Calibration temperature	20...28°C
Relative humidity	< 95% RH (non-cond.)
Protection degree	IP20
Mechanical
Dimensions (HxWxD)	109 x 23.5 x 104 mm
Weight approx.	160 g
DIN rail type	DIN EN 60715/35 mm
Wire size	0.13...2.08 mm²AWG 26...14 stranded wire
Screw terminal torque	0.5 Nm
Vibration	EC 60068-2-6
2...13.2 Hz	±1 mm
13.2...100 Hz	±0.7 g
Common
Supply
Supply voltage, universal	21.6...253 VAC, 50...60 Hz or 19.2...300 VDC
Fuse	400 mA SB / 250 VAC
Max. required power	≤ 2.5 W
Max. power dissipation	≤ 2.0 W
Isolation voltage
Test voltage	2.3 kVAC
Input to any (working)	250 VAC (reinforced)
Relay to relay (working)	< 115 VAC (reinforced)
Relay to analog (working)	> 115 VAC (basic)
NPN to analog (working)	Isolated > 50 VDC
Push-Pull / PNP to analog (working)	Shared ground with analog output
Response time (0...90%, 100...10%)≤ 30 ms
Auxiliary supplies
Sensor supply limitation (terminal 44)	20 mA, 5...17 V
Programming	PR 4500 communication interfaces
Signal dynamics, output	18 bit
Signal / noise ratio	> 60 dB
EMC immunity influence	< ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst	< ±1% of span
Input
Frequency input
Frequency range	0.001 Hz to 100 kHz
Time range, time function	10 μs to 999.9 s
Max. frequency / min. pulse width, with input filter ON	75 Hz / 8 ms
Sensor specifications
NAMUR, trig-level LOW / HIGH	≤ 1.2 / ≥ 2.1 mA
Tacho, trig-level LOW / HIGH	≤ -50 mV / ≥ +50 mV
NPN / PNP, trig-level LOW / HIGH	≤ 4.0 V / ≥ 7.0 V
TTL, trig-level LOW / HIGH	≤ 0.8 V / ≥ 2.0 V
S0, trig-level LOW / HIGH	≤ 2.2 mA / ≥ 9.0 mA
User-programmable trig-levels	-0.05...6.50 V 0.0...10.0 mA
Output
Current output
Signal range	-23...+23 mA (bipolar) 0...23 mA (unipolar)
Programmable standard ranges	0...20, 4...20, S4-20, ±10 mA, ±20 mA
Load ( at current output)	≤ 600 Ω
Load stability	≤ 0.001% of span / 100 Ω
Response time, programmable	0.0...60.0 s
Sensor error indication	0 / 3.5 / 23 mA / none
Current limit	≤ 28 mA
Buffered voltage output
Signal range	± 11.5 V
Programmable standard ranges	0...5, 1...5, 0...10, 2...10, ± 5, ± 10 VDC
Load, min.	> 2 kΩ
Response time, programmable	0.0...60.0 s
Relay output
Relay functions	Setpoint, Window, Sensor error, Latch, Power and Off
Hysteresis	0...100%
ON and OFF delay	0...3600 s
Sensor error reaction	Break / Make / Hold
Max. voltage	250 VAC / VDC
Max. current	2 A
Max. AC power	500 VA
Frequency output
Frequency range	0.001 Hz...100 kHz
Prog. pulse time (f ≤ 500 Hz)	1...1000 ms
Pulse time > 500 Hz	Fixed 50%
NPN / PNP / Push-Pull output
Isink max.	130 mA
Voltage drop 130 mA	< 1.5 VDC
Ext. voltage (terminal 24) max.	30 VDC
Isource max.	30 mA
Vout	24 VDC ± 10%
Voltage	5...24 VDC
