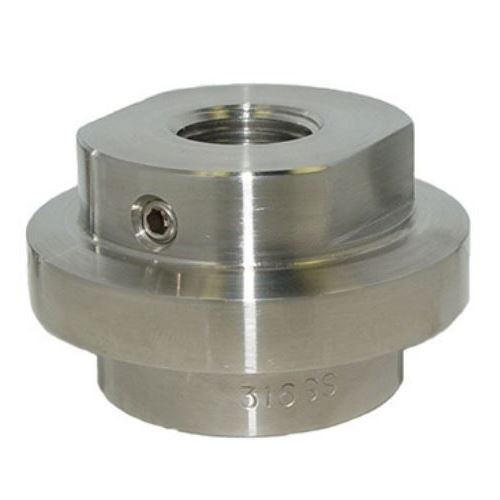

Pic Gauges, DS-MLP23-316-0, 1/2" FNPT x 3/4" FNPT Mini Low Pressure Seal, No Flushing Connection, 316 Stainless Steel

Features:

Threaded mini diaphragm seal for low-pressure applications
Compact, durable all-welded construction

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

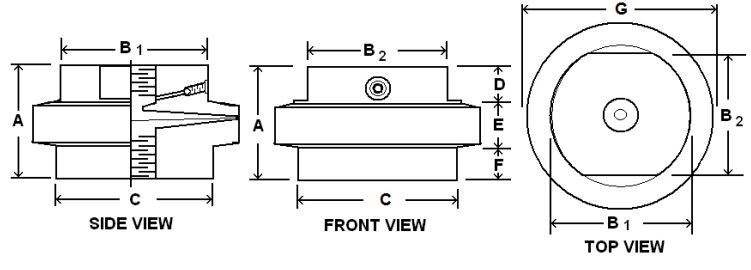

Dimensions

A: 1.54" / 38 mm
B1: 1.87" / 47 mm
B2: 1.74" / 44 mm
C: 1.77" / 45 mm
D: 0.5" / 13 mm
E: 0.53" / 13 mm
F: 0.48" / 12 mm
G: 2.48" / 63 mm

Instruments

Gauges, pressure switches, transmitters

Pressures

Vacuum or pressures up to 2500 psi

Process Temperature

-49°F to 750°F (-45°C to 399°C)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions

A: 1.54" / 38 mm
B1: 1.87" / 47 mm
B2: 1.74" / 44 mm
C: 1.77" / 45 mm
D: 0.5" / 13 mm
E: 0.53" / 13 mm
F: 0.48" / 12 mm
G: 2.48" / 63 mm

Instruments

Gauges, pressure switches, transmitters

Pressures

Vacuum or pressures up to 2500 psi

Process Temperature

-49°F to 750°F (-45°C to 399°C)

Note: Please read description carefully. Do not base your order on the picture presented.
