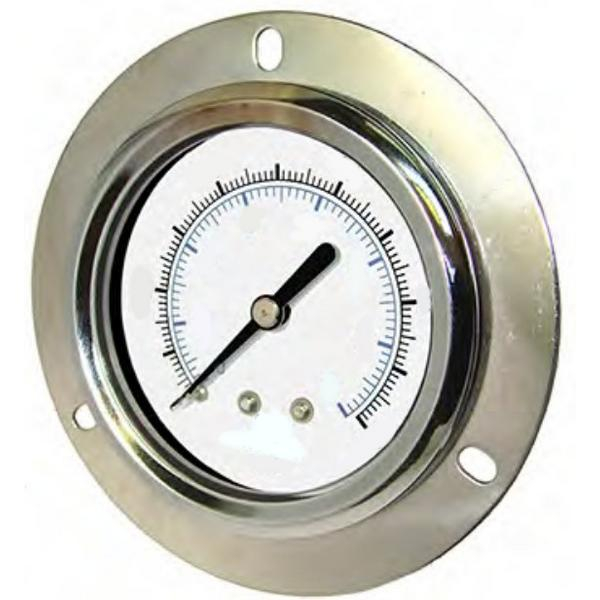

Buy PIC Gauges 104D-254E, 104D Series Dry Utility Gauge, 2-1/2", 0/100 psi

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Dial Size:: Dial Size: 2-1/2"
Pressure Range:: Pressure Range: 0/100 psi

Features:

Dry gauge is suitable for most applications
Chrome plated steel
Copper alloy Internals
Accuracy grades are specified by ASME standards

Utility gauge for commercial and industrial markets.

See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

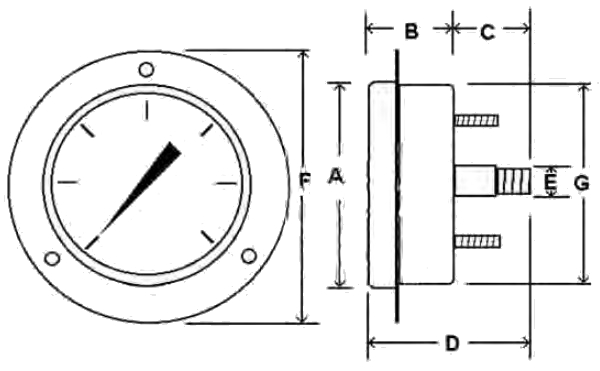

Dimensions

A - 2.68" (68 mm)
B - 1.12" (28 mm)
C - 0.76" (19 mm)
D - 1.87" (48 mm)
F - 3.47" (88 mm)
G - 2.44" (62 mm)
E - 1/4" NPT

Dial

2-1/2" (63 mm)

Range

0/100 psi

Case

Chrome plated steel, dry non-fillable

Wetted Parts

Copper alloy

Bezel

Chrome plated steel, fixed

Lens

Plastic

Pointer

Black aluminum

Connection

Center back mount with front flange (ships with u-clamp), 1/4" NPT

Scale

Standard: psi/BAR (x 100 = kPa)

Accuracy

3-2-3% of Span, ASME B40.1 Grade B

Ambient Temp

-50° F to 160° F

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Dimensions

A - 2.68" (68 mm)
B - 1.12" (28 mm)
C - 0.76" (19 mm)
D - 1.87" (48 mm)
F - 3.47" (88 mm)
G - 2.44" (62 mm)
E - 1/4" NPT

Dial

2-1/2" (63 mm)

Range

0/100 psi

Case

Chrome plated steel, dry non-fillable

Wetted Parts

Copper alloy

Bezel

Chrome plated steel, fixed

Lens

Plastic

Pointer

Black aluminum

Connection

Center back mount with front flange (ships with u-clamp), 1/4" NPT

Scale

Standard: psi/BAR (x 100 = kPa)

Accuracy

3-2-3% of Span, ASME B40.1 Grade B

Ambient Temp

-50° F to 160° F

Note

Note: Please read description carefully. Do not base your order on the picture presented.
