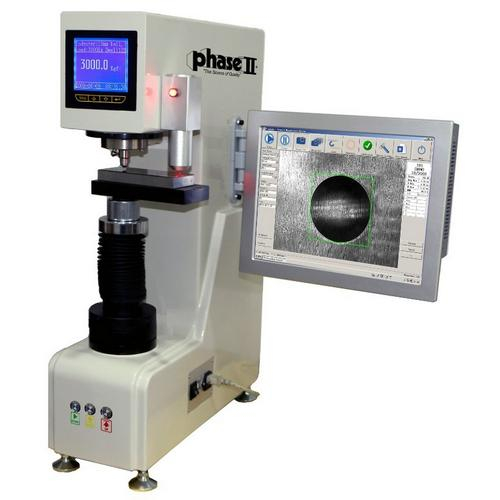

Phase II 900-359 Brinell Hardness Tester with Auto Z Axis

Innovative closed-loop technology. The Brinell hardness tester incorporates the latest load cell technology. The test load is applied via a closed-loop control unit with a load cell, a DC motor and an electronic measurement and control unit. The result is highly accurate Brinell hardness measurements at all test loads up to 0.5%. The common load overshoot or undershoot as known from traditional dead weight, or open-loop, systems is eliminated. The absence of mechanical weights not only eliminates friction problems but also makes the equipment less sensitive to misalignments caused by vibrations

Features:

• Equipped with CCD camera and built-in touch screen
• PC performs the indentation measuring process automatically.
• Measurement software includes useful functions (Single and batch testing mode, Tolerance setting w/alarm, Statistic values such as Max, Min, Avg, R and S are selectable, Convert test result to other scales, such as HRC,HRB,HRA,HV,ob.)
• All test results and indention images are saved automatically
• Test report created in Microsoft EXCEL format, can be edited, copied or printed.
• Load Cell driven system provides precise control of test force application
• Direct digital reading
• Engineered to obtain highly sensitive and accurate readings
• Perfect for laboratories, workshops, tool rooms, inspection labs, etc.
• Measuring Range: 8-650HBW
• The gross weight of the Brinell Hardness tester is 50% less than the traditional dead weights type tester.
