Options and Related Products

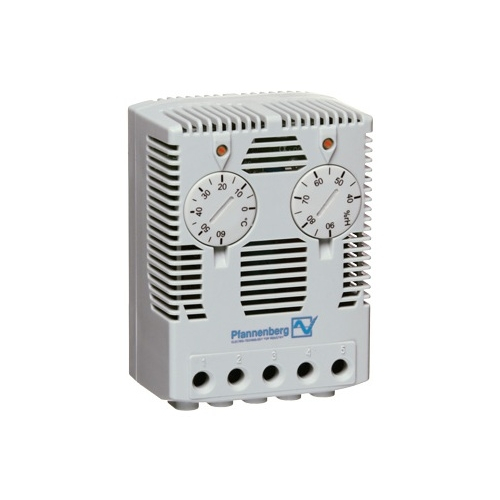

Pfannenberg, 17218100000, FLZ 610 40-90% rh/0-60deg C 230VAC Hygrostat-Thermostat

Features:

Hygrostats switch on control cabinet heaters or filterfans when a preset relative humidity is exceeded. The relative humidity is kept above the dew point and the condensation of water on electrical components and the corrosion of unprotected sheet metal is prevented.
The electronic combination device unites thermostat and hygrostat in one housing and monitors the relative humidity and the temperature independently of each other.

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Device implementation		electronic hygrostat-thermostat combo device
Type of contact		changeover/relay
Rated voltage		230 V AC 50 / 60 Hz*
Setting range		40 - 90 % R.H. / 32° - 140° F (0 °C to +60 °C)
Switching temperature difference		approx. 2 K ± 1 K / approx. 4 % R.H. ± 1 %
Switching point tolerance		± 4² K
Contact resistance		< 10mΩ
Max. switching powervalue in brackets:inductive load at cosφ = 0.6	N.C	240 V AC, 8 (3) A
	N.O.	24 VDC, 4 A
	DC	-
Operating temperature range °F (°C)		-4 … +140 (-20 … +60)
Storage temperature range °F (°C)		-4 … +179 (-20 … +80)
System of protection		IP 20
Weight		85 g
Connection		screw terminal for cable cross-section 0.5 to 2.5 mm²
Approvals		UL, cUL
Operating display		LED
Suitable for the operation of		fan and heater
Type of mounting		snap fastening for 35mm profile bars according to EN 60715
Color		RAL 7035
* N.C. = normally closed / N.O. = normally open

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Device implementation		electronic hygrostat-thermostat combo device
Type of contact		changeover/relay
Rated voltage		230 V AC 50 / 60 Hz*
Setting range		40 - 90 % R.H. / 32° - 140° F (0 °C to +60 °C)
Switching temperature difference		approx. 2 K ± 1 K / approx. 4 % R.H. ± 1 %
Switching point tolerance		± 4² K
Contact resistance		< 10mΩ
Max. switching powervalue in brackets:inductive load at cosφ = 0.6	N.C	240 V AC, 8 (3) A
	N.O.	24 VDC, 4 A
	DC	-
Operating temperature range °F (°C)		-4 … +140 (-20 … +60)
Storage temperature range °F (°C)		-4 … +179 (-20 … +80)
System of protection		IP 20
Weight		85 g
Connection		screw terminal for cable cross-section 0.5 to 2.5 mm²
Approvals		UL, cUL
Operating display		LED
Suitable for the operation of		fan and heater
Type of mounting		snap fastening for 35mm profile bars according to EN 60715
Color		RAL 7035
* N.C. = normally closed / N.O. = normally open

Note: Please read description carefully. Do not base your order on the picture presented.
