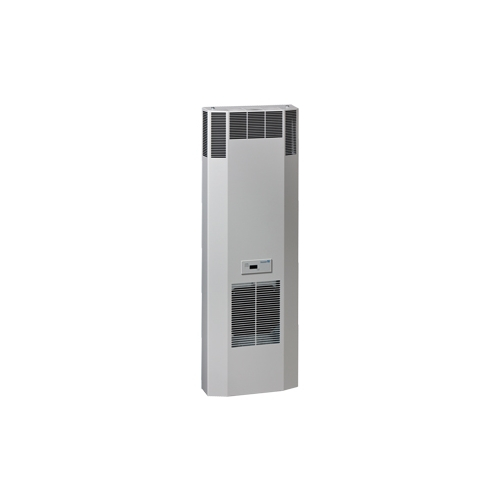

DTI 6301 1500W Multi Controller Cooling Unit for Partially Recessed Mounting, 230V

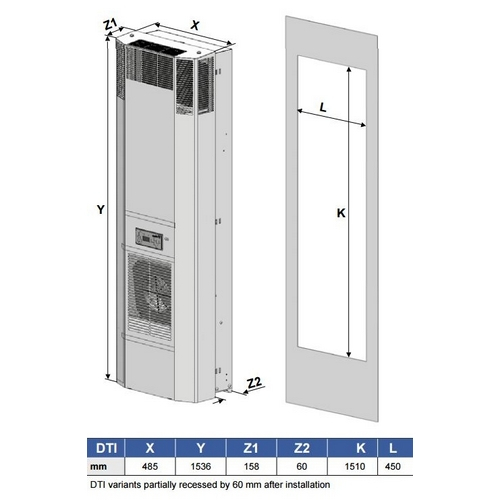

DTI: for partially recessed mounting in the door or side

Features:

top EER (energy efficiency ratio)
energy efficient: reduced CO2 emissions = environment-friendly
condenser with large fin spacing for highly effective protection in strongly contaminated ambient air
large distance between intake and exhaust vents, safe circulation within the electrical enclosure due to long passage of air, therefore hot spots are eliminated
exceptional serviceability
new USB port (MC version) for easy retrieval of parameter settings/history (Pfannenberg eCOOL-Plant software necessary)
energy-saving mode by default integrated into the Multi Controller

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Rated voltage ±10%		AC 50 / 60, 230 V

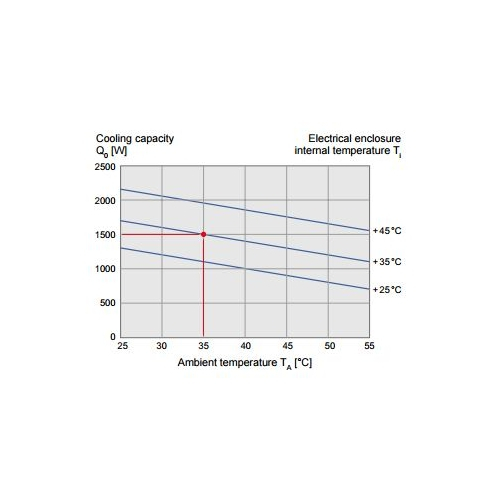

Cooling performanceaccording to EN 14511	L35/L35	1500 W
	L35/L50	1200 W
Power consumption L35/L35		727 / 868 W
Current consumption L35/L35		5.08 / 5.17 A
Starting current L35/L35		19.7 A
Energy efficiency ratio		2.06
Unimpeded airflow (free flow)	internal	935 m3/h
	external	938 m3/h
Pre fuse T		16 A
Type of connection		spring-type terminal included with plug
Noise level according to EN ISO 3741		< 62 dB (A)
Weight (without packaging)		50 kg
Ambient temperature range		+ 15 … + 55 / + 59 … + 131°C / °F
Control range (adjustable)		+ 25 … + 50 / + 77 … + 122; factory setting + 35 / + 95°C / °F
Refrigerant R134a		600 g
Condensate management		integrated condensate evaporation system with safety overflow
Protection system according to EN 60529	IP54	towards the electrical enclosure if used as intended by the manufacturer
	IP34	towards the surroundings if used as intended by the manufacturer
Design	housing	galvanised sheet steel
	cover	electrostatically powder coated (200 °C)
Color		RAL 7035

Rated voltage ±10%		AC 50 / 60, 230 V
Cooling performanceaccording to EN 14511	L35/L35	1500 W
	L35/L50	1200 W
Power consumption L35/L35		727 / 868 W
Current consumption L35/L35		5.08 / 5.17 A
Starting current L35/L35		19.7 A
Energy efficiency ratio		2.06
Unimpeded airflow (free flow)	internal	935 m3/h
	external	938 m3/h
Pre fuse T		16 A
Type of connection		spring-type terminal included with plug
Noise level according to EN ISO 3741		< 62 dB (A)
Weight (without packaging)		50 kg
Ambient temperature range		+ 15 … + 55 / + 59 … + 131°C / °F
Control range (adjustable)		+ 25 … + 50 / + 77 … + 122; factory setting + 35 / + 95°C / °F
Refrigerant R134a		600 g
Condensate management		integrated condensate evaporation system with safety overflow
Protection system according to EN 60529	IP54	towards the electrical enclosure if used as intended by the manufacturer
	IP34	towards the surroundings if used as intended by the manufacturer
Design	housing	galvanised sheet steel
	cover	electrostatically powder coated (200 °C)
Color		RAL 7035

Note: Please read description carefully. Do not base your order on the picture presented.
