PWS 3152 1700W 304 Stainless Steel Air / Water Heat Exchanger, 230V

Water can save energy and keep your enclosure cool even under harsh conditions.

Features:

Rugged, industrial construction with removable cover
Airflow path design to prevent water intrusion
Electronic thermostat-controlled water solenoid to prevent over-cooling (condensate issues)

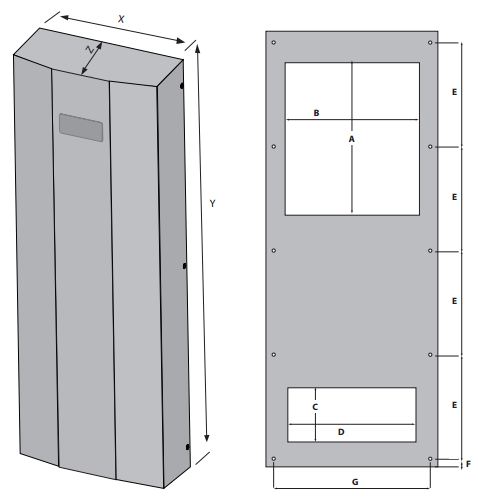

Compatible with DTS 31X5 mounting pattern for interchangeability

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Color	304 Stainless Steel

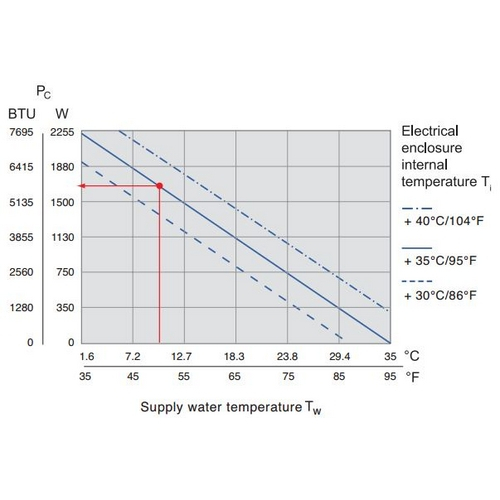

Cooling capacity	1700 W
Rated voltage	230 V AC
Mains frequency	50/60 Hz
Power consumption	58 W
Current consumption	0.29 A
Fuse (maximum)	6 A
Noise level @ 1 m (EN ISO 3741)	<60 dB(A)
Maximum inlet air temp	140 (60) °F (°C)
Minimum water temp	36 (2) °F (°C)
Control temperature range (adjustable)	+50 … + 104 / + 10 … + 40 °F / °C
Control temperature setting (factory)	95 (35) °F (°C)
Rated flow rate	2 gpm (450 L/H)
Maximum water pressure	150 PSIG
Duty cycle	100 %
NEMA Type rating	NEMA Type 12/3R/4 (4x S/S)
Construction - housing	galvanized/electrostatically powder coated (392 °F / 200 °C); (304 Polish #3 stainless steel)
Construction - heat exchanger	copper pipe / aluminum fin

Color	304 Stainless Steel
Cooling capacity	1700 W
Rated voltage	230 V AC
Mains frequency	50/60 Hz
Power consumption	58 W
Current consumption	0.29 A
Fuse (maximum)	6 A
Noise level @ 1 m (EN ISO 3741)	<60 dB(A)
Maximum inlet air temp	140 (60) °F (°C)
Minimum water temp	36 (2) °F (°C)
Control temperature range (adjustable)	+50 … + 104 / + 10 … + 40 °F / °C
Control temperature setting (factory)	95 (35) °F (°C)
Rated flow rate	2 gpm (450 L/H)
Maximum water pressure	150 PSIG
Duty cycle	100 %
NEMA Type rating	NEMA Type 12/3R/4 (4x S/S)
Construction - housing	galvanized/electrostatically powder coated (392 °F / 200 °C); (304 Polish #3 stainless steel)
Construction - heat exchanger	copper pipe / aluminum fin

Note: Please read description carefully. Do not base your order on the picture presented.
