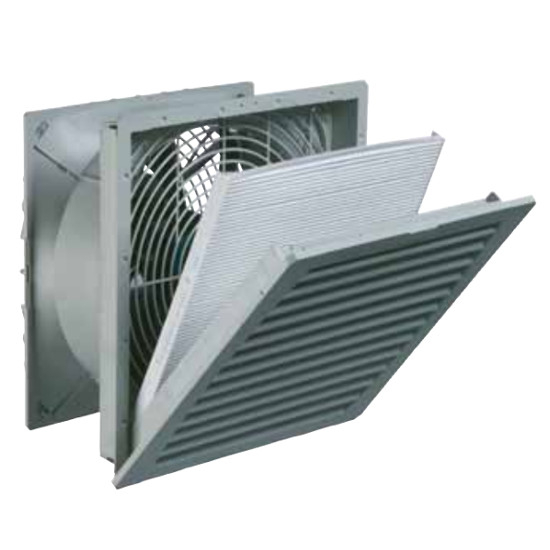

Pfannenberg, 116 6615 3055, PF 65000 115V UV/IP55 Filterfan, NEMA type 12

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Type Protection	IP 55
Rated voltage ± 10 %	115 V
Unimpeded airflow (CFM2)	770 / 785 m³/h
Air flow rate in combination	490 / 501 m³/h
Power consumption	110 / 160 W
Current consumption	0.96 / 1.4 A
Noise level (according to EN ISO 3741)	63 / 64 dB (A)
Type of connection	spring-type terminal
Fuse	6 A
System of protection according to EN 60529 / UL 50	NEMA type 12 - fluted filter
Filtration effi ciency	91 %
Filter mat quality class	G 4
Duty cycle	100 %
Bearing type	ball bearing
Service life L10 (+ 40 °C)2	40000 h
Temperature range	-40 … +131 °F / -40 … + 55 °C
Material Protection Rating	additional: UV-resistant

Type Protection	IP 55
Rated voltage ± 10 %	115 V
Unimpeded airflow (CFM2)	770 / 785 m³/h
Air flow rate in combination	490 / 501 m³/h
Power consumption	110 / 160 W
Current consumption	0.96 / 1.4 A
Noise level (according to EN ISO 3741)	63 / 64 dB (A)
Type of connection	spring-type terminal
Fuse	6 A
System of protection according to EN 60529 / UL 50	NEMA type 12 - fluted filter
Filtration effi ciency	91 %
Filter mat quality class	G 4
Duty cycle	100 %
Bearing type	ball bearing
Service life L10 (+ 40 °C)2	40000 h
Temperature range	-40 … +131 °F / -40 … + 55 °C
Material Protection Rating	additional: UV-resistant

Note: Please read description carefully. Do not base your order on the picture presented.
