Buy Pfannenberg 11666023055, PF 66000 Light Grey Filterfan

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

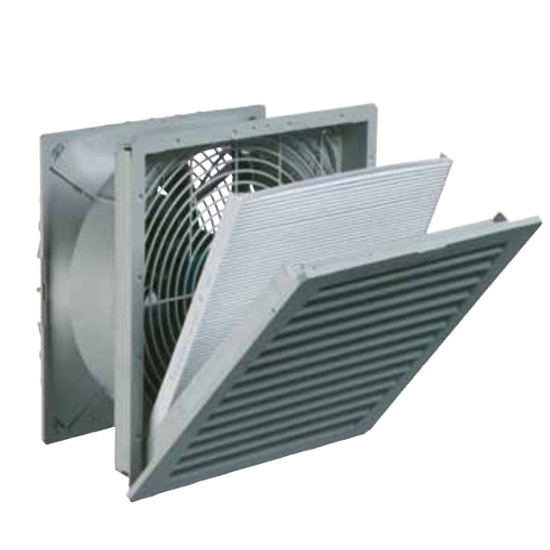

Pfannenberg, 116 6602 3055, PF 66000 460V Light Grey 4th Generation UV/IP55 Filterfan

Features:

installation size 6, airflow rate up to 785 m³/h
three performance classes, cut-out compatible
system of protection IP 54 and IP 55, NEMA type 12
UL, cUL approval
UV-resistance (IP 55 version)
cut-out compatible with installation size 6 from the 3rd Generation and with cooling unit DTFI 9021

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Type Protection	IP 55
Rated voltage ± 10 %	400 / 460 3 ~ V
Unimpeded airflow	770 / 785 m³/h
Air flow rate in combination	490 / 501 m³/h
Power consumption	120 / 155 W
Current consumption	0.26 / 0.25 A
Noise level (according to EN ISO 3741)	63 / 64 dB (A)
Type of connection	spring-type terminal
Fuse	6 A
System of protection according to EN 60529 / UL 50	NEMA type 12 - fluted filter
Filtration effi ciency	91 %
Filter mat quality class	G 4
Duty cycle	100 %
Bearing type	ball bearing
Service life L10 (+ 40 °C)2	40000 h
Temperature range	-40 … + 131 °F / - 40 … + 55 °C
Material Protection Rating	additional: UV-resistant

Type Protection	IP 55
Rated voltage ± 10 %	400 / 460 3 ~ V
Unimpeded airflow	770 / 785 m³/h
Air flow rate in combination	490 / 501 m³/h
Power consumption	120 / 155 W
Current consumption	0.26 / 0.25 A
Noise level (according to EN ISO 3741)	63 / 64 dB (A)
Type of connection	spring-type terminal
Fuse	6 A
System of protection according to EN 60529 / UL 50	NEMA type 12 - fluted filter
Filtration effi ciency	91 %
Filter mat quality class	G 4
Duty cycle	100 %
Bearing type	ball bearing
Service life L10 (+ 40 °C)2	40000 h
Temperature range	-40 … + 131 °F / - 40 … + 55 °C
Material Protection Rating	additional: UV-resistant

Note: Please read description carefully. Do not base your order on the picture presented.
