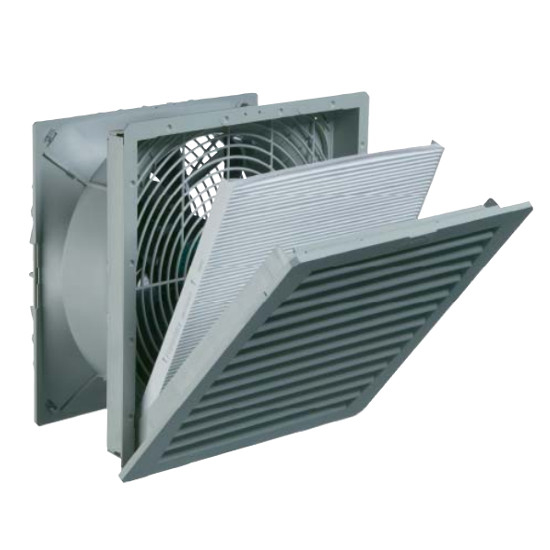

Pfannenberg, 116 6510 3055, PF 65000 230V Light Grey 4th Generation UV/IP55 Filterfan

Features:

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Type Protection	IP 55
Rated voltage ± 10 %	230 V
Unimpeded airflow	505 / 505 m³/h
Air flow rate in combination	380 / 380 m³/h
Power consumption	65 / 80 W
Current consumption	0.3 / 0.36 A
Noise level (according to EN ISO 3741)	54 / 52 dB (A)
Type of connection	spring-type terminal
Fuse	6 A
System of protection according to EN 60529 / UL 50	NEMA type 12 - fl uted fi lter
Filtration effi ciency	91 %
Filter mat quality class	G 4
Duty cycle	100 %
Bearing type	ball bearing
Service life L10 (+ 40 °C)2	40000 h
Temperature range	+ 5 … + 131 °F / - 15 … + 55 °C
Material Protection Rating	additional: UV-resistant

Type Protection	IP 55
Rated voltage ± 10 %	230 V
Unimpeded airflow	505 / 505 m³/h
Air flow rate in combination	380 / 380 m³/h
Power consumption	65 / 80 W
Current consumption	0.3 / 0.36 A
Noise level (according to EN ISO 3741)	54 / 52 dB (A)
Type of connection	spring-type terminal
Fuse	6 A
System of protection according to EN 60529 / UL 50	NEMA type 12 - fl uted fi lter
Filtration effi ciency	91 %
Filter mat quality class	G 4
Duty cycle	100 %
Bearing type	ball bearing
Service life L10 (+ 40 °C)2	40000 h
Temperature range	+ 5 … + 131 °F / - 15 … + 55 °C
Material Protection Rating	additional: UV-resistant

Note: Please read description carefully. Do not base your order on the picture presented.
