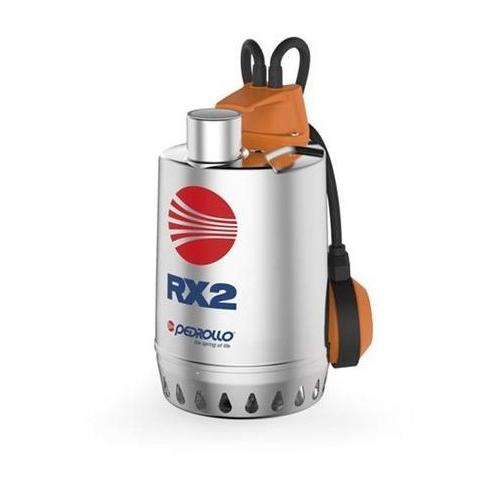

Pedrollo, RXm2, RX Series 115V/5.7A, 0.37kW, 0.5HP Submersible Drainage Pump
The RX series pumps are suitable for use with clear water that does not contain abrasive particles. Because of the design solutions that have been adopted, such as the complete cooling of the motor and the shaft with double seal, these pumps are easy to use and reliable. They are suitable for use in fixed installations and applications such as draining small flooded areas (rooms, cellars, garages) in the event of an emergency, for the disposal of waste water in the home (from dishwashers, washing machines) and for emptying drainage traps.
Performance Range:
Applications Limits:
- 32 feet maximum immersion depth (with a sufficiently long power cable)
- Maximum liquid temperature 122 °F (Maximum liquid temperature 194 °F for a maximum of 3 minutes intermittent service)
- Passage of suspended solids up to Ø 0.4 in (10 mm)
- Suction level: 14 mm above ground level
- Continuous service S1
The Pumps are Complete with:
- 16 feet long power cable for RX 2
- float switch for single-phase versions
