Oatey FTD5135 PVC Freestanding Tub Drain Kit with Stainless Flange

Oatey, FTD5135, PVC Freestanding Tub Drain Kit with Stainless Steel Flange

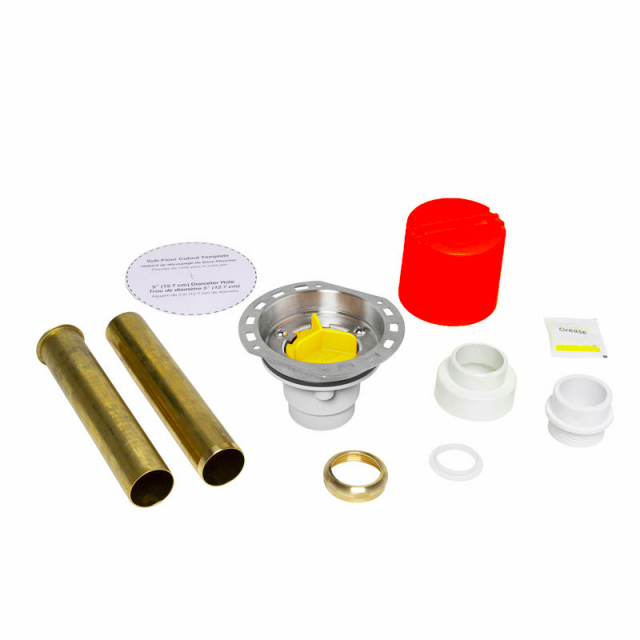

FTD5135 Includes Only:

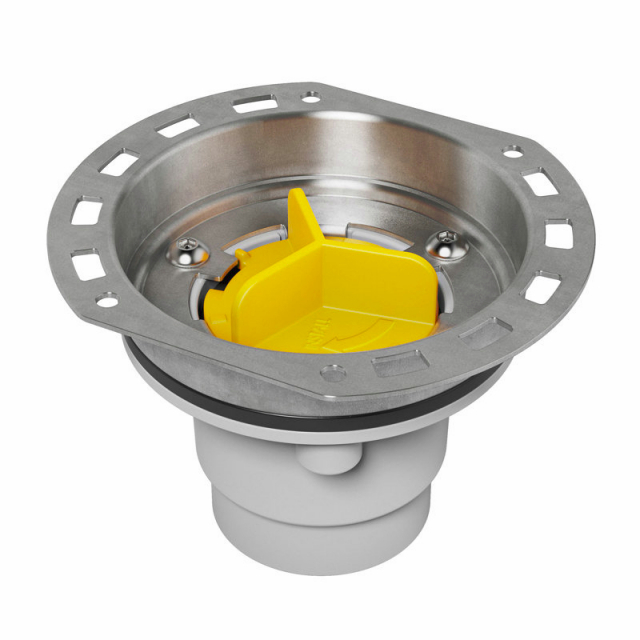

• Freestanding tub drain body
• Protective cap
• 1.5 in. X 2 in. Schedule 40 PVC or ABS adapter (Adapter not included with cast iron drain body)
• 1.5 in. X 8 in. flanged brass tailpiece
• 1.5 in. X 8 in. threaded brass tailpiece
• Slip joint nut
• Washer
• 1.5 in. Schedule 40 PVC or ABS threaded tailpiece adapter (both PVC and ABS adapter included with cast iron drain body)
• Quarter-turn test plug
• Cutout template
• Lubricant

Features:

• Drain kit for freestanding/island center and offset tubs
• Made of PVC and compatible with brass or Schedule 40 tailpieces
• Solvent welds directly to a 1-1/2 in. or 2 in. Schedule 40 drain pipe using the included adapter and Oatey cement and cleaner (sold separately)
• Includes 304 stainless steel asymmetrical flange
• Everything needed for quick, easy freestanding tub drain install
• Easy drop-in drain pipe connection with innovative compact design
• Eliminates "stub out" method and need for access below the floor, reducing time for and simplifying rough-in installation between P-trap and tub
• Compact size offers design flexibility, as the drain fits into 8 in. joists in addition to 10 in. and 12 in. joists, requiring only a 4 in. opening
• Once the connection has been made between the DWV system, drain body and subfloor, the tub can be dropped in with no additional steps required
• Easy-to-grab, high visibility protective cap keeps tile from being installed over the open drain and can be easily removed with or without tongue-and-groove pliers and a screwdriver
• Pre-installed, tool-free 1/4-turn test plug allows for testing up to 40 ft. of head

The Oatey Freestanding Tub Drain Kit is universally compatible with freestanding/island center and offset tubs. When installed at rough-in, it provides simple installation between the P-trap and tub from above the floor. Jobsite-ready features include a pre-installed, tool-free quarter-turn test plug and easy-to-grab protective cap to prevent drain tile-over. Oatey products have earned the trust of plumbing professionals for over 100 years.
