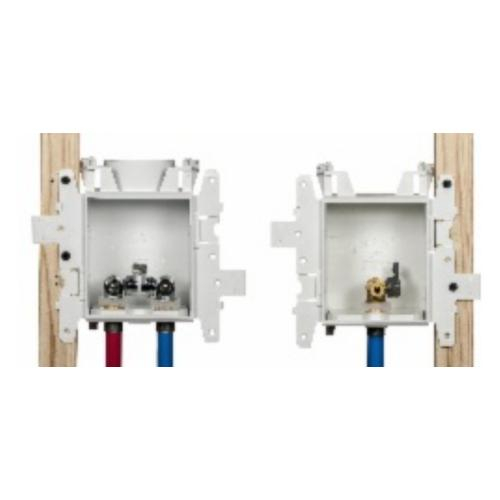

Oatey 37412 Moda Fire-Rated Kitchen Supply Box, Push Connect

Options: Push Connect, Hammer: without Hammer
  • Brand Oatey
  • Part # 37412
  • Model # Moda
  • Condition
    Brand New
Buy in Bulk 4 Applicable Promotion(s)
Show All

  • Buy 20 pcs, get 7% off

    Save 7% each on Oatey 37412 Moda Fire-Rated Kitchen Supply Box, Push Connect when you purchase 20 or more

  • Buy 10 pcs, get 5% off

    Save 5% each on Oatey 37412 Moda Fire-Rated Kitchen Supply Box, Push Connect when you purchase 10 or more

  • Buy 5 pcs, get 3% off

    Save 3% each on Oatey 37412 Moda Fire-Rated Kitchen Supply Box, Push Connect when you purchase 5 or more

  • Buy 3 pcs, get 1% off

    Save 1% each on Oatey 37412 Moda Fire-Rated Kitchen Supply Box, Push Connect when you purchase 3 or more

Availability
Contact Us
Check Availability
Quantity
Share:

Options and Related Products

Options:
Options: Push Connect
Hammer:
Hammer: without Hammer

Oatey, 37412, Moda Fire-Rated Kitchen Supply Box, Push Connect, No Hammer, 2-Valve and 1-Valve

Features:

  • A universal single box platform provides maximum versatility, installation simplicity and rugged reliability and is now Fire-Rated!
  • MODA Fire-Rated supply boxes come with metal brackets to provide additional support and hold in place under extreme temperatures.
  • The intumescent pad is activated by heat and designed to expand, protecting the back of the supply box under extreme heat.
  • Modular, flexible design.
  • Comprehensive connections and hammer/ no-hammer to handle all requirements of job site specifications.
Unit of MeasurePack of 2 pcs
See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
ValvesASME A112.18.1 / CSA B125.1
NSF / ANSI 61 & 372
Water Hammer ArrestorsASSE 1010, PDI WH 201
BoxesIAPMO-Listed, PS-54
Outlet Box & BracketsPVC
Valve BodyForged Brass C46500 No Lead (Chrome Plated)
Valve Retention ClipStainless Steel
Valve O-RingsNSF Approved EPDM (2)
Metal Bracket and L-shape Brackets16 Gauge Galvanized Steel
Arrestor BodyCopper (Type L)
PistonPolypropylene with two NBR O-rings
Piston LubricationDow Coming Molykote 111
Temperature Rating (Valve)250° F/121° C
Max Testing Pressure (Valve)100 psi (Air)/250 psi (Water)
Box Width13.96"
Box Height8.46"
Box Depth3.63"
Metal Bracket Height8.87"
Faceplate Depth1.25”
Faceplate Width6.00"
Faceplate Height6.45"
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
ValvesASME A112.18.1 / CSA B125.1
NSF / ANSI 61 & 372
Water Hammer ArrestorsASSE 1010, PDI WH 201
BoxesIAPMO-Listed, PS-54
Outlet Box & BracketsPVC
Valve BodyForged Brass C46500 No Lead (Chrome Plated)
Valve Retention ClipStainless Steel
Valve O-RingsNSF Approved EPDM (2)
Metal Bracket and L-shape Brackets16 Gauge Galvanized Steel
Arrestor BodyCopper (Type L)
PistonPolypropylene with two NBR O-rings
Piston LubricationDow Coming Molykote 111
Temperature Rating (Valve)250° F/121° C
Max Testing Pressure (Valve)100 psi (Air)/250 psi (Water)
Box Width13.96"
Box Height8.46"
Box Depth3.63"
Metal Bracket Height8.87"
Faceplate Depth1.25”
Faceplate Width6.00"
Faceplate Height6.45"
Note

Note: Please read description carefully. Do not base your order on the picture presented.
