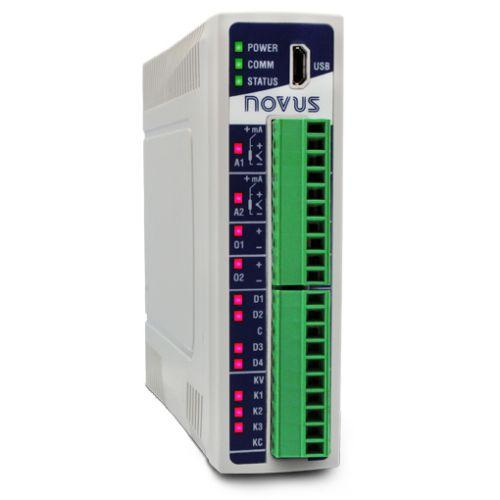

NOVUS 8811611440 DigiRail Connect Ethernet Module, Ramix Relay Output

Output: Relay Output
  • Brand NOVUS
  • Part # 8811611440
  • Model # DigiRail
  • Condition
    Brand New
Availability
Typically In Stock
Check Availability
Quantity
Make an Offer
Share:

Options and Related Products

Output:
Output: Relay Output

DigiRail Connect is a versatile I/O module to be used as an extension of any brand automation system. Its rich mixed inputs and outputs offer industrial standard analog and digital signaling. Bringing the Industry 4.0 to the rail level, the connectivity of DigiRail connect allows it to be used as slave Modbus RTU device in RS485 networks or as a server Modbus TCP device under Ethernet network. Specially designed for harsh environments, DigiRail Connect complies with the main EMC and EMI standards, providing robustness and reliability for industrial applications.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Authorized Distributor

Technical Details

Reviews
Input Channels4 Digitals and 2 Analogs
Output Channels2 Relays and 2 Analogs
Analog Input
Analog Signals AcceptedThermocouples J, K, T, N, E, R, S e B, Pt100, Pt1000, NTC, 0-60 mV, 0-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA
Accuracy of Measure0.2 % of maximum range Pt100, Pt1000, NTC, mA, V, mV
Analogue Channel resolutionAnalog inputs: 16 bits (65536 levels)
Digital Input
Maximum Voltage30 V
Input Current0.15 mA
Maximum FrequencyDry Contact: 10 Hz, PNP: 250 Hz, NPN: 250 Hz
Minimum Pulse DurationDry Contact: 50 ms, PNP: 4 ms, NPN: 4 ms
Relay Digital Output
TypeSPST-NO and SPDT
Maximum load current3 A (SPST) / 6 A (SPDT)
Switching voltage250 Vac
Analog Output
Signal types0-20 mA, 4-20 mA, 0-10 V
Maximum load0-20 / 4-20 mA: ≤ 500 Ohms
Resolution12 bits
Accuracy0.5 %
Communication Interfaces
  • USB
  • Ethernet: 10/100 Mb/s, IEEE standard 802.3u
  • RS485
Power Supply
Tension10 Vdc to 36 Vdc
Maximum consumption5 W
Typical consumption20 mA
Temperature-20 to 60 °C
Humidity5 to 95 % RH, non-condensing
HousingABS, PC
Protection RatingIP2O
Dimensions100 x 30 x 110 mm
Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details
Input Channels4 Digitals and 2 Analogs
Output Channels2 Relays and 2 Analogs
Analog Input
Analog Signals AcceptedThermocouples J, K, T, N, E, R, S e B, Pt100, Pt1000, NTC, 0-60 mV, 0-5 Vdc, 0-10 Vdc, 0-20 mA, 4-20 mA
Accuracy of Measure0.2 % of maximum range Pt100, Pt1000, NTC, mA, V, mV
Analogue Channel resolutionAnalog inputs: 16 bits (65536 levels)
Digital Input
Maximum Voltage30 V
Input Current0.15 mA
Maximum FrequencyDry Contact: 10 Hz, PNP: 250 Hz, NPN: 250 Hz
Minimum Pulse DurationDry Contact: 50 ms, PNP: 4 ms, NPN: 4 ms
Relay Digital Output
TypeSPST-NO and SPDT
Maximum load current3 A (SPST) / 6 A (SPDT)
Switching voltage250 Vac
Analog Output
Signal types0-20 mA, 4-20 mA, 0-10 V
Maximum load0-20 / 4-20 mA: ≤ 500 Ohms
Resolution12 bits
Accuracy0.5 %
Communication Interfaces
  • USB
  • Ethernet: 10/100 Mb/s, IEEE standard 802.3u
  • RS485
Power Supply
Tension10 Vdc to 36 Vdc
Maximum consumption5 W
Typical consumption20 mA
Temperature-20 to 60 °C
Humidity5 to 95 % RH, non-condensing
HousingABS, PC
Protection RatingIP2O
Dimensions100 x 30 x 110 mm
Note

Note: Please read description carefully. Do not base your order on the picture presented.
