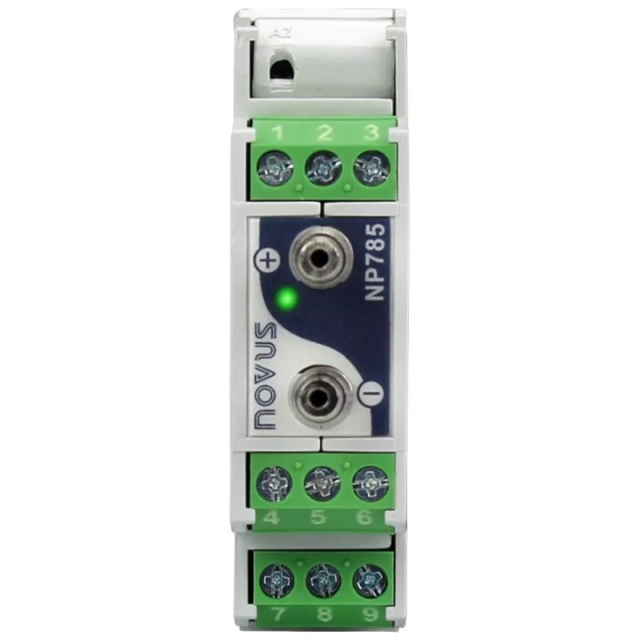

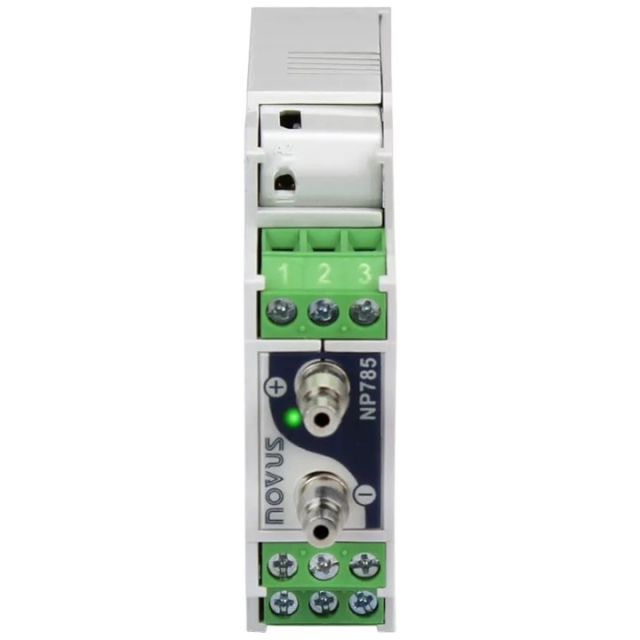

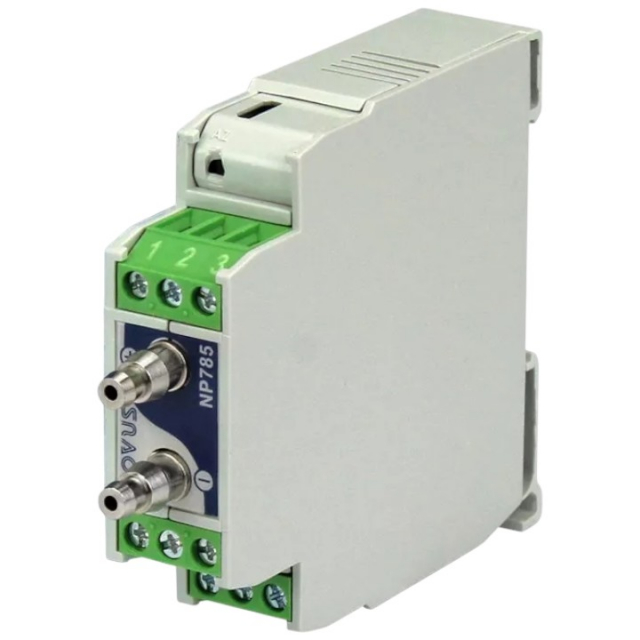

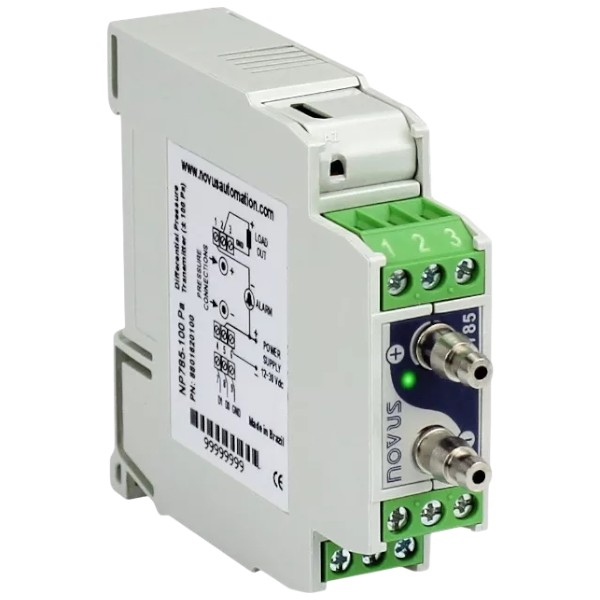

NOVUS, 8801620050, NP785-50PA Ultra Low Differential Pressure Transmitter, DIN Rail, RS485, -50 to 50 Pa
Features:
- ± 50 Pa (0.2 inH2O)
- The NP785 Ultra Low Differential Pressure Transmitter is designed for HVAC, cleanroom, and flow measurement applications.
- It measures very small overpressure, underpressure, and differential pressure in neutral, non-corrosive gases.
- With a configurable measuring range via USB, the NP785 offers bi-directional measurement, covering vacuum to positive pressure ranges.
- Housed in a DIN rail-mountable ABS/PC enclosure, it features nickel-plated brass fittings for 4 or 6 mm pneumatic hoses.
- The analog output can be set to 0-10 V or 4-20 mA, with RS-485 Modbus RTU communication for advanced integration.
- Temperature compensation ensures long-term stability, and compliance with EMC standards guarantees reliability in demanding environments.
Ideal for HVAC (Heating, Ventilation, and Air Conditioning), clean-room, and flow measurement applications, the NP785 is an ultra-low differential pressure transmitter for measuring very small over-pressure, under-pressure, and differential pressure in neutral, non-corrosive gaseous media. It provides a pressure-proportional linear signal output with a configurable measuring range via USB using the configuration software.
NP785 can operate bi-directionally, providing the ability to measure differential pressure ranges from vacuum to positive pressure. It is housed in a DIN rail mountable ABS/ PC enclosure, and its nickel-plated brass fittings accept pneumatic hoses with 4 or 6 mm internal diameter.
The analog output can be set to either 0-10 V or 4-20 mA while having an RS-485 with Modbus RTU communication protocol. Designed for HVAC and industrial environments, the NP785 ensures temperature compensation for long-term stability and complies with EMC standards, providing robustness and reliability for a wide range of applications.
