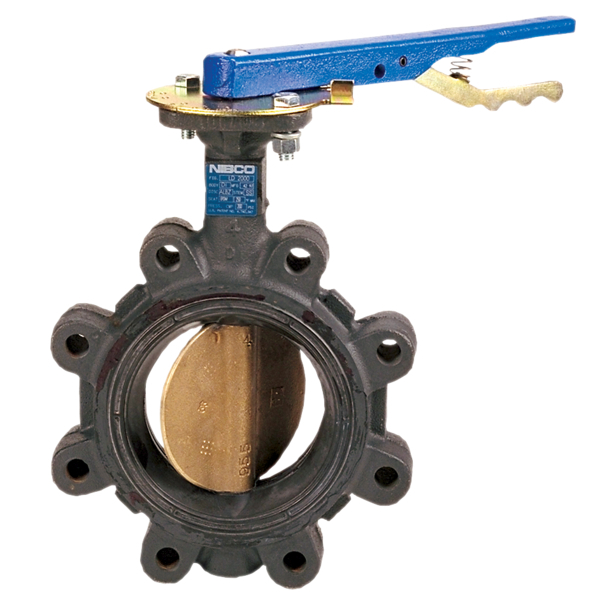

NIBCO NLG100F LD20003 3" Butterfly Valve Iron Lug Type 200 PSI

Nibco, NLG100F, LD20003 3" Butterfly Valve - Ductile Iron, Lug Type, 200 PSI with Lever-Lock Handle

The NIBCO® lug type butterfly valve provides bi-directional dead-end service without a downstream flange, and bubble-tight shutoff at 200 PSI. The valve is ideal for commercial and some light industrial process applications, including HVAC and vacuum services, in addition to hot and cold potable water.

Features:

• Valve pressure rating 200 psi
• 225°F continuous and 250°F intermittent service
• Lug style
• EPDM molded-in seat liner
• Aluminum bronze disc
• Stainless steel stem with copper bushings
• Lead-free
• Not recommended for steam service
• Designed to meet MSS SP-67
• MSS SP-25 (markings)
• Designed to meet API 609
• U.S. Coast Guard Category A
• California Health and Safety Code Section 116875
• Vermont Act 193
