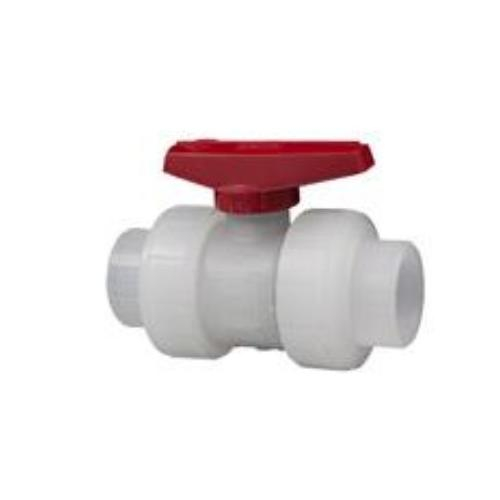

NIBCO, MN913AD, S62TB-E, Ball Valve - Model C, Socket, Tru-Bloc® True Union, Chem-Pure® Natural Polypropylene Schedule 80, EPDM, 2"
The Chemtrol® Tru-Bloc® True Union ball valve is engineered with a self-adjusting seat and upstream and downstream blocking capability to stop flow when an alternate union is removed for servicing the piping system. The valve's injection molded Chem-Pure® natural polypropylene construction with EPDM O-ring is ideal for use with deionized water systems, clean chemical processes, pharmaceutical operations and food processing.
The original Chemtrol® True Union design allows the valve and operational components to be conveniently lifted from the piping system for repair or replacement. Tru-Bloc® advances the True Union concept with the self-adjusting energizer O-ring. The valve can be easily joined with the socket end connections. Chemtrol® Chem-Pure® polypropylene exhibits extremely low content of metals, organic compounds, and free ions. No pigments or other adulterants (natural) are added to the plastic resin. Chem-Pure® natural polypropylene demonstrates excellent chemical resistance properties, including aqueous solutions of acids, alkalis and salts, and a number of organic solvents. Choose Chemtrol® valves for the most reliable, versatile and economical valve option in commercial and industrial applications.
Features:
- Valve pressure rating 150 psi at 73°F water non-shock full-port
- Maximum service temperature 180°F
- True Bloc® design
- EPDM O-rings
- Female thermo-seal fusion socket fusion connections
- Red handle
- Do not use or test with compressed air or other gases
- ASTM D4101 material
