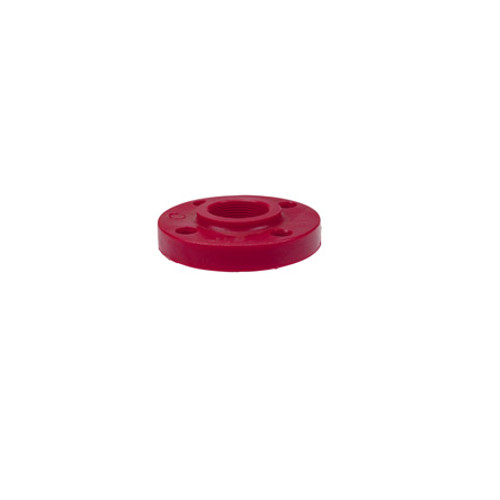

NIBCO CD04850 6551-H-3 1" Thread Flange FPT - Kynar Red PVDF

NIBCO, CD04850, 6551-H-3 1" Thread Flange FPT - Kynar Red PVDF, Schedule 80, One-Piece Solid Design

The Chemtrol Class 150 thread flange is an injection molded red Kynar polyvinylidene fluoride (PVDF) thermoplastic fitting that features a female NPT thread connection. Chemtrol Kynar red PVDF exhibits superior strength, working temperature and chemical resistance characteristics. Red pigment provides UV protection. Kynar PVDF offers versatile chemical resistance to slats, strong acids, dilute bases and many organic solvents such as aromatics, aliphadics and chlorinated groups. PVDF is also ideally suited for handling wet or dry chlorine bromine and other halogens.

Features:

• Design stress of 1,360 psi at 73°F
• Maximum service temperature 280°F
• Universal Part No. 3851
• One-piece solid design
• Female thermo-seal socket fusion connections
• Female socket fusion connections and flange connections compatible with ANSI B16.5 Class 150
• Do not use or test with compressed air or other gases
• ASTM D3222 Type I material
