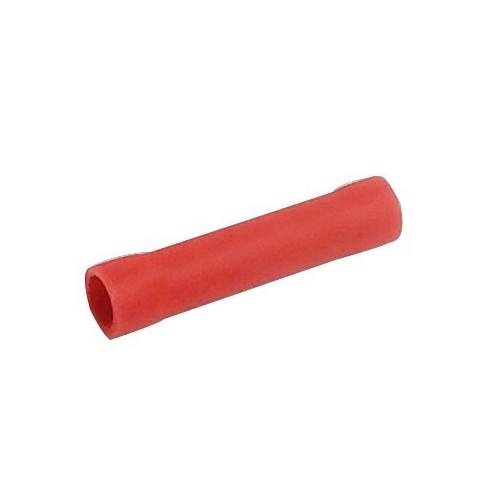

Morris 12134 #2 AWG Red Vinyl Insulated Butt Splice Connector, (Pack of 100 pcs)

Features:

• Vinyl Insulated Butt Splice Connector Material: High Strength Electrolytic Copper Plate or Tubular Copper
• Electro-Tin Plated for corrosion resistance
• Vinyl Insulated Butt Splice Connectors has Center Wire Stop Barrier
• Color Coded Insulation for easy identification
• Easy Entry Expanded Insulation eliminates strand “Hang Up", increasing crimping rates and provides mechanical strain relief
• Maximum Electric Current: 26 AWG - 5.5 Amp, 24 AWG - 7 Amp, 22 AWG - 9 Amp, 20 AWG - 12 Amp, 18 AWG - 17 Amp, 16 AWG - 18 Amp, 14 AWG - 30 Amp, 12 AWG - 35 Amp, 10 AWG - 50 Amp, 8 AWG - 70 Amp, 6 AWG - 95 Amp, 4 AWG - 125 Amp, 2 AWG - 170 Amp
• 167°F(75°C) 600 Volts Max
• cULus Listed
• Dimension Measurements = Inches
• Order Qty of 100 = 1 Bag of 100
