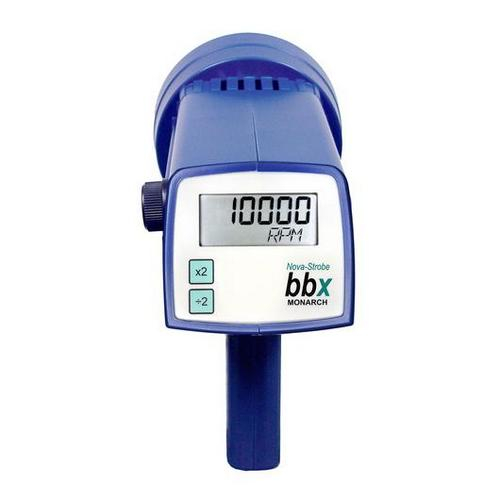

Monarch Instrument, 6207-012, Nova-Strobe BBX Battery Powered Stroboscope, 115/230V

The Nova-Strobe series represents the latest in portable stroboscope technology. The bbx is simple to operate, just point and shoot. Lightweight and bright with flash rates to 10,000 flashes per minute (FPM) these strobes are comfortable to hold and will operate continuously with no danger of overheating. The bbx battery operated stroboscope weighs only 1.9 lbs. (0.86kg) and will run continuously for 2 hours on a single charge. A slow charger is included. Re-charge time is 4 hours.

All new Nova-Strobe BBX provides a low-cost digital display stroboscope.

Features:

Cost Effective
Powerful light output (20% brighter than competitive models)
Lightweight for easy handling
Electronic Switching provides continuous cool operation
Tripod mounting bushing in handle

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Optional Accessories

Reviews

Range Flashes/Minute

30-10,000 FPM/RPM

Display

LCD with 6 numeric 0.506 in. (12.85 mm) high digits and 5 alphanumeric 0.282 in. (7.17 mm) high digits

Accuracy/Resolution

±1 LSD/1 FPM

Light Output

Average Power:15.5 Watts typical 4000 FPM Instantaneous (per flash): 230 mJoule typical to 4000 FPM

Knob Adjustment

Digital rotary switch with 36 detents per revolution; velocity-sensitive

Memory

Last setting before power down is remembered and restored on next power

Flash Tube and Life (typical)

High-power xenon - 100 million flashes typical

Operating Temperature

32-104 °F (0-40 °C)
May be operated for short time periods, slightly beyond the stated temperature range.

Input Power

AC powered: 115 V ac or 230 V ac, 35 VA (as ordered)

Operating Time (charged batteries)

2 hours typical, 1800 FPM

Dimensions (LxWxH)

Body: 9 in. x 3.66 in. x 3.56 in. (229 mm x 93 mm x 90 mm)
Reflector Housing: 4.8 in.(122 mm) diameter
Handle: 4.25 in. (108 mm) long

Power

Internal NiMH rechargeable batteries

Weight

1.9 lbs. (0.86 kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Range Flashes/Minute

30-10,000 FPM/RPM

Display

LCD with 6 numeric 0.506 in. (12.85 mm) high digits and 5 alphanumeric 0.282 in. (7.17 mm) high digits

Accuracy/Resolution

±1 LSD/1 FPM

Light Output

Average Power:15.5 Watts typical 4000 FPM Instantaneous (per flash): 230 mJoule typical to 4000 FPM

Knob Adjustment

Digital rotary switch with 36 detents per revolution; velocity-sensitive

Memory

Last setting before power down is remembered and restored on next power

Flash Tube and Life (typical)

High-power xenon - 100 million flashes typical

Operating Temperature

32-104 °F (0-40 °C)
May be operated for short time periods, slightly beyond the stated temperature range.

Input Power

AC powered: 115 V ac or 230 V ac, 35 VA (as ordered)

Operating Time (charged batteries)

2 hours typical, 1800 FPM

Dimensions (LxWxH)

Body: 9 in. x 3.66 in. x 3.56 in. (229 mm x 93 mm x 90 mm)
Reflector Housing: 4.8 in.(122 mm) diameter
Handle: 4.25 in. (108 mm) long

Power

Internal NiMH rechargeable batteries

Weight

1.9 lbs. (0.86 kg)
