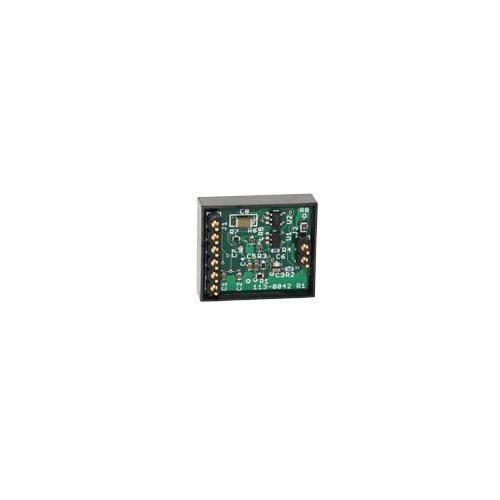

Microflex 101-0015 InLink-CC Modem Module, Capacitor Coupled

InLink-CC is a HART protocol modem module that modulates logic level 1200 BAUD serial data onto a HART loop, and demodulates received HART data providing a 1200 BAUD serial bit stream. It allows designers to easily implement a HART compliant modem without knowledge of the HART physical layer requirements. InLink-CC interfaces to standard 3.3V logic and only requires 3 control lines; transmit, receive, and request-to-send (RTS). The InLink-CC small package size further simplifies integration into your design.

Features

• Complies with HART protocol physical layer
• Includes capacitor coupling to the HART loop
• Complete modem module - reduces time-to-market
• Small Footprint - Simplifies Design Integration - 1/2 the size of the InLink-TC
• Rugged Encapsulated Package with Gold Plated Pins for Increased Reliability
• Through-hole or Socket Mounting
• 2.7V to 3.6V Operating Voltage
• Industrial Temperature Range -40°C to +85°C
• Transmit Signal Wave-Shaping - Sinusoidal with Lowest Harmonic Distortion
• Receive Band-Pass Filter and Digital Processing for Reliability in Noisy Conditions
• CMOS Compatible
• Low Power 300uA Typical
