Meiji Techno, HD1500TM, HDMI/USB 2 MP Camera 60 FPS/HDMI 30 FPS/USB, SD, Mouse. 11.8" HDMI Monitor
Includes:
- HD1500TM Camera
- HDMI Cable
- USB Cable
- 12V AC/DC Power adapter
- SD Card
- Mouse
- Application Software ISCapture
- Packing Box

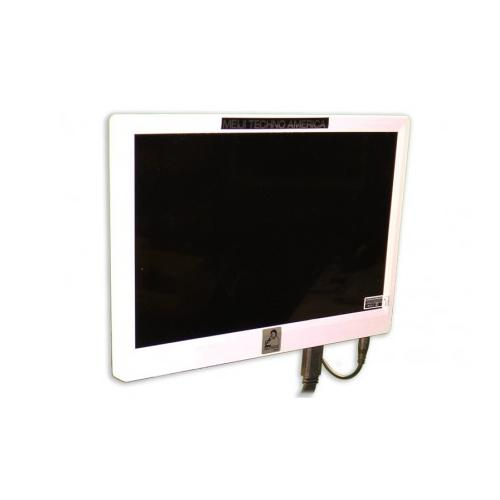

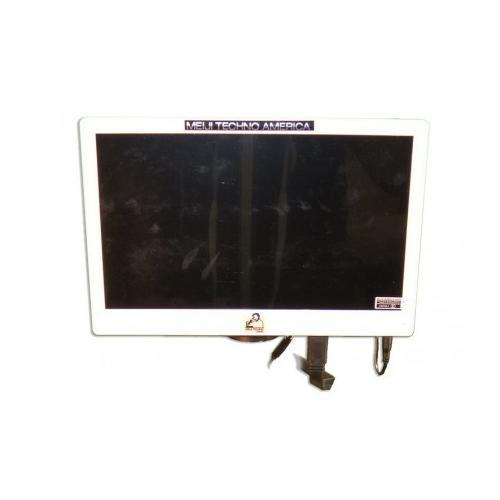

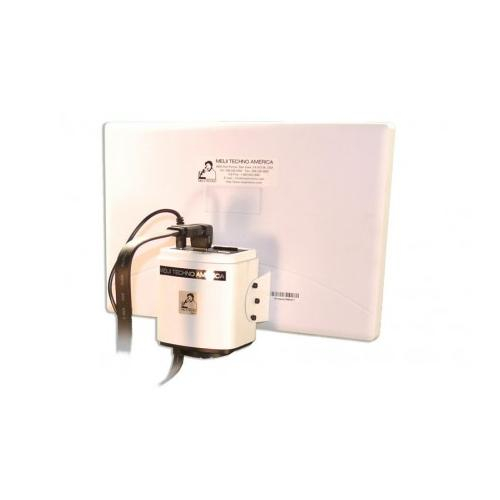

The display, featuring full HD (1080x1920) resolution, provides high fidelity images from the HD1500TM with a refresh rate of 60 frames per second. Included with the display is a mounting kit that allows the display to be mounted directly on the HD1500TM. The incredibly disruptive aspect of the display is that when used with the (supplied) mouse, the user can access menus that provide all the features of the camera such as exposure, white balance, gamma etc plus allow the user to save images and videos to the cameras removable SD card for subsequent offline analysis. All this is achieved without the need for a PC.
Features:
- HDMI C-mount camera
- 6MP Still resolution 3264x1836
- 2MP Live video 1920x1080 60 fps (frames per second) via HDMI
- 2MP Live video 1920x1080 30 fps (frames per second) via USB2.0
- Video record: 1080p 30fps on SD card or PC
- Output: HDMI, USB 2.0, SD Card
- 1/3" CMOS chip (use .3x C-mount adapter)
- Button (1) controls: Exposure, White balance, Gamma, Gain, Sharpness, Saturation, Contrast
- Button (2) controls: Cross line, Image Compare, Image Freeze
- OS support: Windows XP and later
- Software: ISCapture full parameter control
