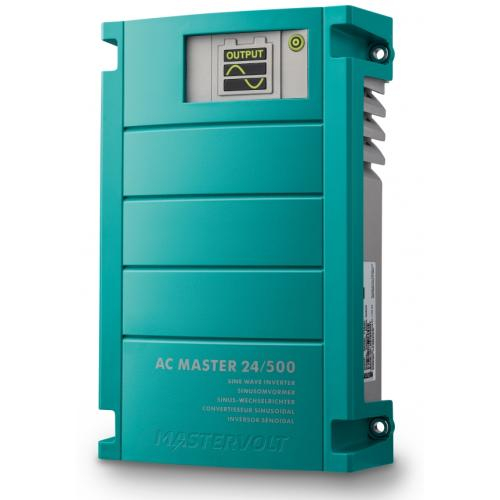

Buy Mastervolt 28020502, AC Master Inverter 24/500-230V IEC Outlet

info@MegaDepot.com

(800) 884-5767
+1 (332) 900-3727 (Intl.)

Options and Related Products

Watt:: Watt: 500W

Features:

Pure sine wave technology protects sensitive equipment.
Delivers full output at high peak power under the most demanding conditions.
Automatic power saving system for extended runtime.
Easy to install: convenient IEC socket with IEC plug.
Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage.

See more product information See less

Return and Warranty

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Output voltage	230 V - 50 Hz (± 0.1%)
Output waveform	true sine
Nominal battery voltage	24 V
Recommended battery capacity	≥ 50 Ah
Continuous power at 25 °C / 77 °F, cos phi 1	500 W
Continuous power at 40 °C / 104 °F, cos phi 1	400 W
Peak load (5 s)	800 W
AC connection	universal
Galvanic isolation	yes
Efficiency	91 %
Display/read-out	LED display
Alarms	4 alarm modes
Dimensions, hxwxd	210 x 130 x 60 mm, 8.3 x 5.1 x 2.4 inch
Weight	1.22 kg, 2.7 lb
Approvals	CE, E-mark, ABYC A-31
Technology	high frequency, input and output fully isolated
Low battery voltage, switches off at	20 V, ± 0.5 V
Low battery voltage, switches on at	22 V, ± 0.5 V
High battery voltage, switches off at	32 V, ± 0.5 V
High battery voltage, switches on at	29 V, ± 0.5 V
Max. ripple on DC (battery)	10 % RMS
Input current (nominal load)	19 A
No-load power consumption (ON mode)	0.29 A – 7 W
No-load power consumption (energy saving mode)	0.16 A - 4 W
Minimal DC fuse (slow blow)	40 A
Minimal cable size	1.5 metre DC cable delivered as standard
Harmonic distortion typical	< 6 %
Cos phi	all power factors allowed
Temperature range (ambient temp.)	-20 °C to 40 °C, derating power > 40 °C, -4 °F to 104 °F
Cooling	natural/forced
Switch off at (auto recover after cooling down)	50 °C, 122 °F
Protection degree	IP23, vertical wall mounting
Protections	over temperature, over load, short circuit, high/low battery voltage
MasterBus compatible	no

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Output voltage	230 V - 50 Hz (± 0.1%)
Output waveform	true sine
Nominal battery voltage	24 V
Recommended battery capacity	≥ 50 Ah
Continuous power at 25 °C / 77 °F, cos phi 1	500 W
Continuous power at 40 °C / 104 °F, cos phi 1	400 W
Peak load (5 s)	800 W
AC connection	universal
Galvanic isolation	yes
Efficiency	91 %
Display/read-out	LED display
Alarms	4 alarm modes
Dimensions, hxwxd	210 x 130 x 60 mm, 8.3 x 5.1 x 2.4 inch
Weight	1.22 kg, 2.7 lb
Approvals	CE, E-mark, ABYC A-31
Technology	high frequency, input and output fully isolated
Low battery voltage, switches off at	20 V, ± 0.5 V
Low battery voltage, switches on at	22 V, ± 0.5 V
High battery voltage, switches off at	32 V, ± 0.5 V
High battery voltage, switches on at	29 V, ± 0.5 V
Max. ripple on DC (battery)	10 % RMS
Input current (nominal load)	19 A
No-load power consumption (ON mode)	0.29 A – 7 W
No-load power consumption (energy saving mode)	0.16 A - 4 W
Minimal DC fuse (slow blow)	40 A
Minimal cable size	1.5 metre DC cable delivered as standard
Harmonic distortion typical	< 6 %
Cos phi	all power factors allowed
Temperature range (ambient temp.)	-20 °C to 40 °C, derating power > 40 °C, -4 °F to 104 °F
Cooling	natural/forced
Switch off at (auto recover after cooling down)	50 °C, 122 °F
Protection degree	IP23, vertical wall mounting
Protections	over temperature, over load, short circuit, high/low battery voltage
MasterBus compatible	no

Note

Note: Please read description carefully. Do not base your order on the picture presented.
