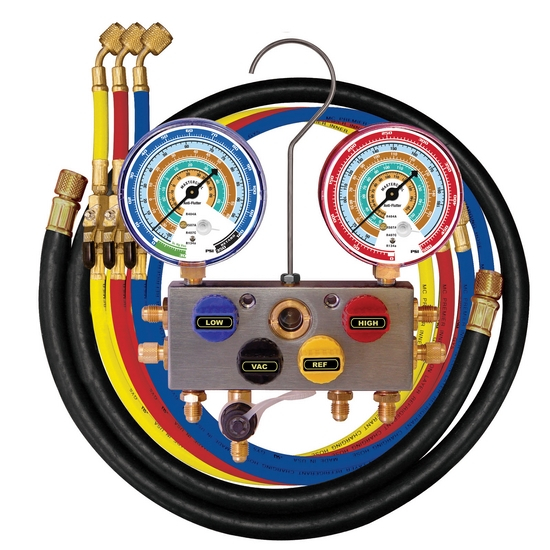

Mastercool 96536 4-Way Aluminum Manifold 3-1/8" Gauge Set

R12, R22 & R502 4-Way Aluminum Manifold Gauge Set

96536 Includes Only:

• 4-Way Aluminum R12, R22 & R502 Manifold with Gauges
• 36", 1/4" SAE Blue nylon barrier ball valve hose with manual shut-off valves
• 36", 1/4" SAE Red nylon barrier ball valve hose with manual shut-off valves
• 36", 1/4" SAE Ylow nylon barrier ball valve hose with manual shut-off valves
• 3/8" SAE Black vacuum hose packaged in a blow molded case

Features with all optional accessories:

• 3-1/8" Gauges (PSI, BAR, °F)
• Exclusive 3/8" Ball Valve Design
• Full 3/8" bore all the way through the block increases flow over the standard block designs
• Ball valve rotates 90° between two teflon washers requiring little effort to turn, even under pressure
• Opens and closes quickly with only a quarter turn
• Visual knob position quickly indicates if valves are open or closed
• Color coordinated Manifold with Gauges for multi-refrigerant recognition
