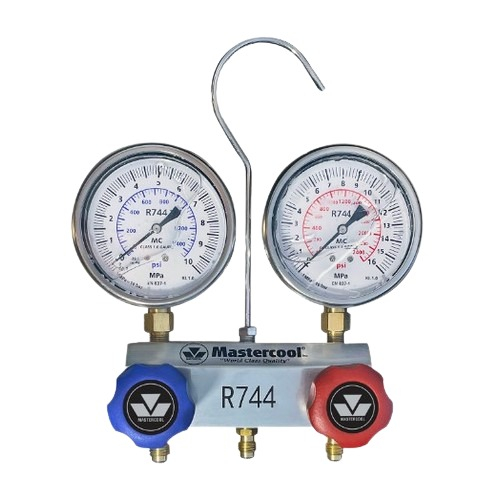

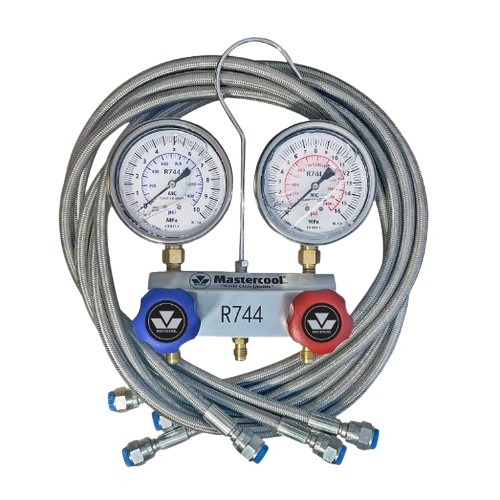

Mastercool 55661-A R744 CO2 2-Way Aluminum Manifold

Mastercool, 55661-A, R744 (CO2) 2-Way Aluminum Manifold with Oil Filled Gauges and (3) 150 Cm Braided Hoses

Features with all optional accessories:

• Free floating piston valve results in less wear and tear in comparison to market standard twisting piston valves
• O-ring with back-up o-ring allows for a better seal at high pressures

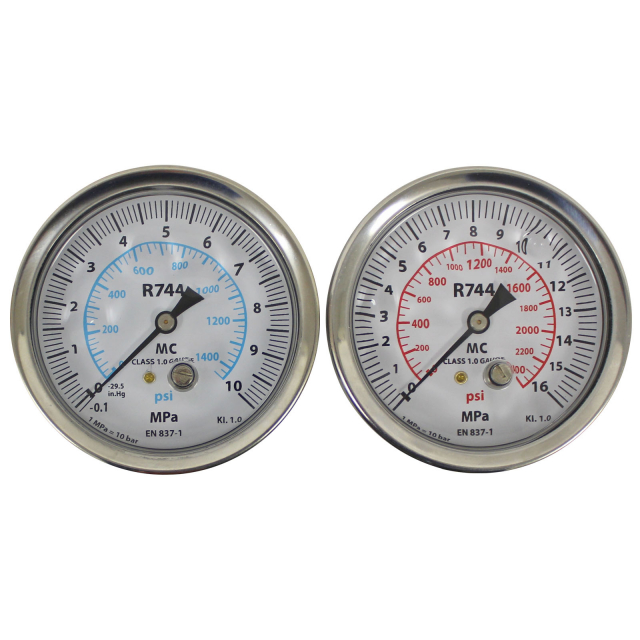

• Oil filled, class 1.0, 70 mm gauges with easy to read pressure scales
• Solid extruded aluminum body for long-lasting durability
• Large easy to grip knobs
• 1/4" SAE fittings
• Steel braided hoses for CO2 provide a leak free connection
• Assemblies packed in plastic carrying case
• Plastic carrying case, p/n 58102-PBR

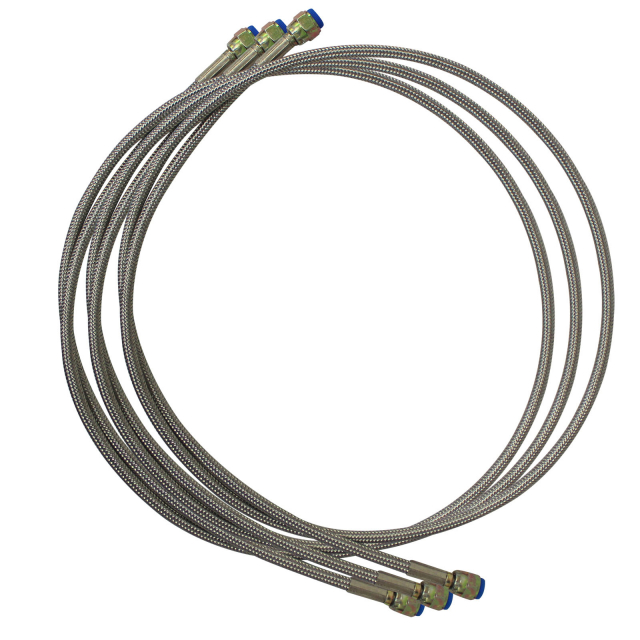

Steel Braided Hoses for CO2

• Steel Braided Hoses O.D of stainless steel rope: 0.18 mm Braided by 4 wires
• Section: PTFE Tube: 7 mm x 5 mm / Sandwich: 0.5 mm
• Outside Diameter 9 mm
• Thread 7/16-20UNF
• Working Pressure 200 BAR
• Burst 800 BAR
